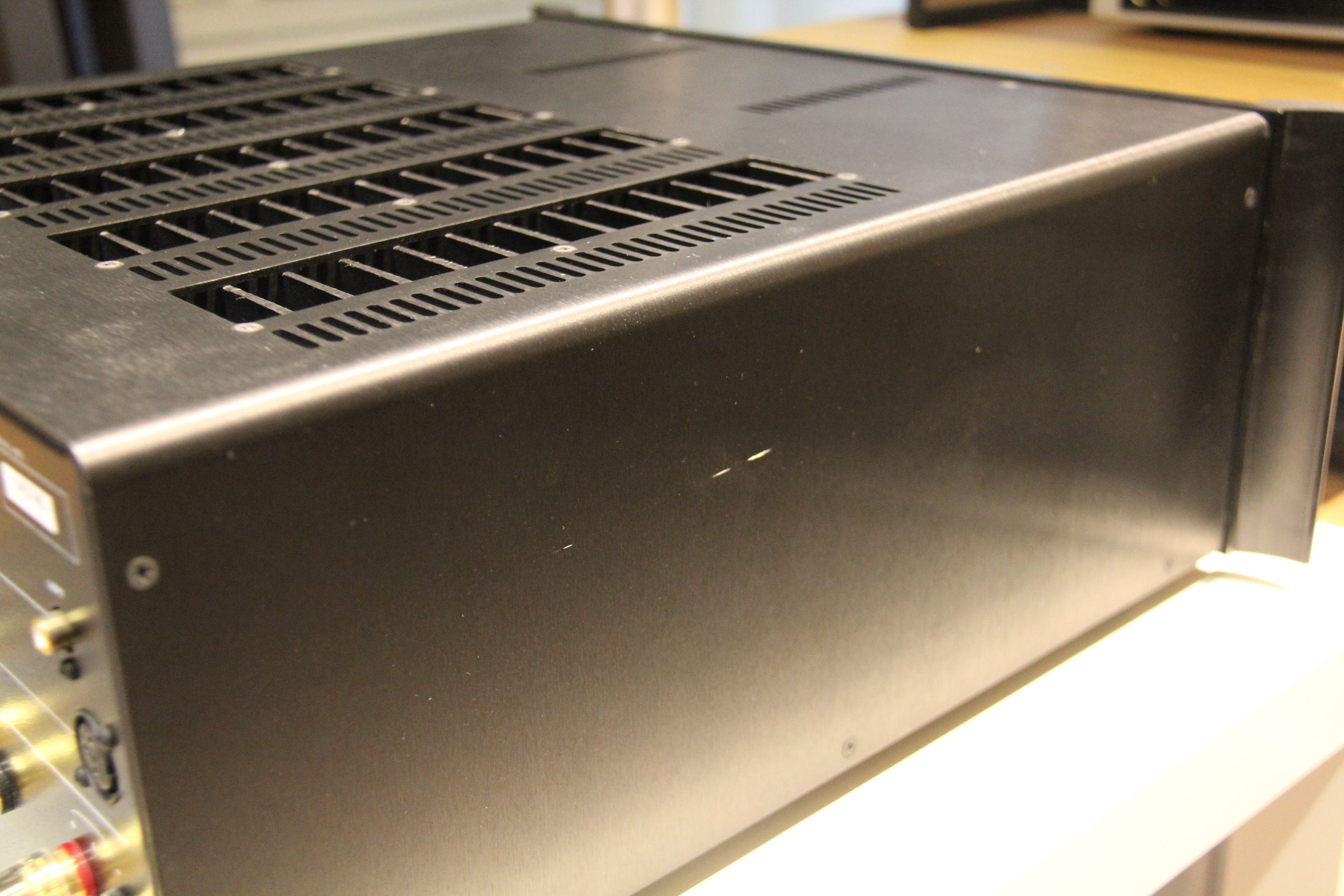

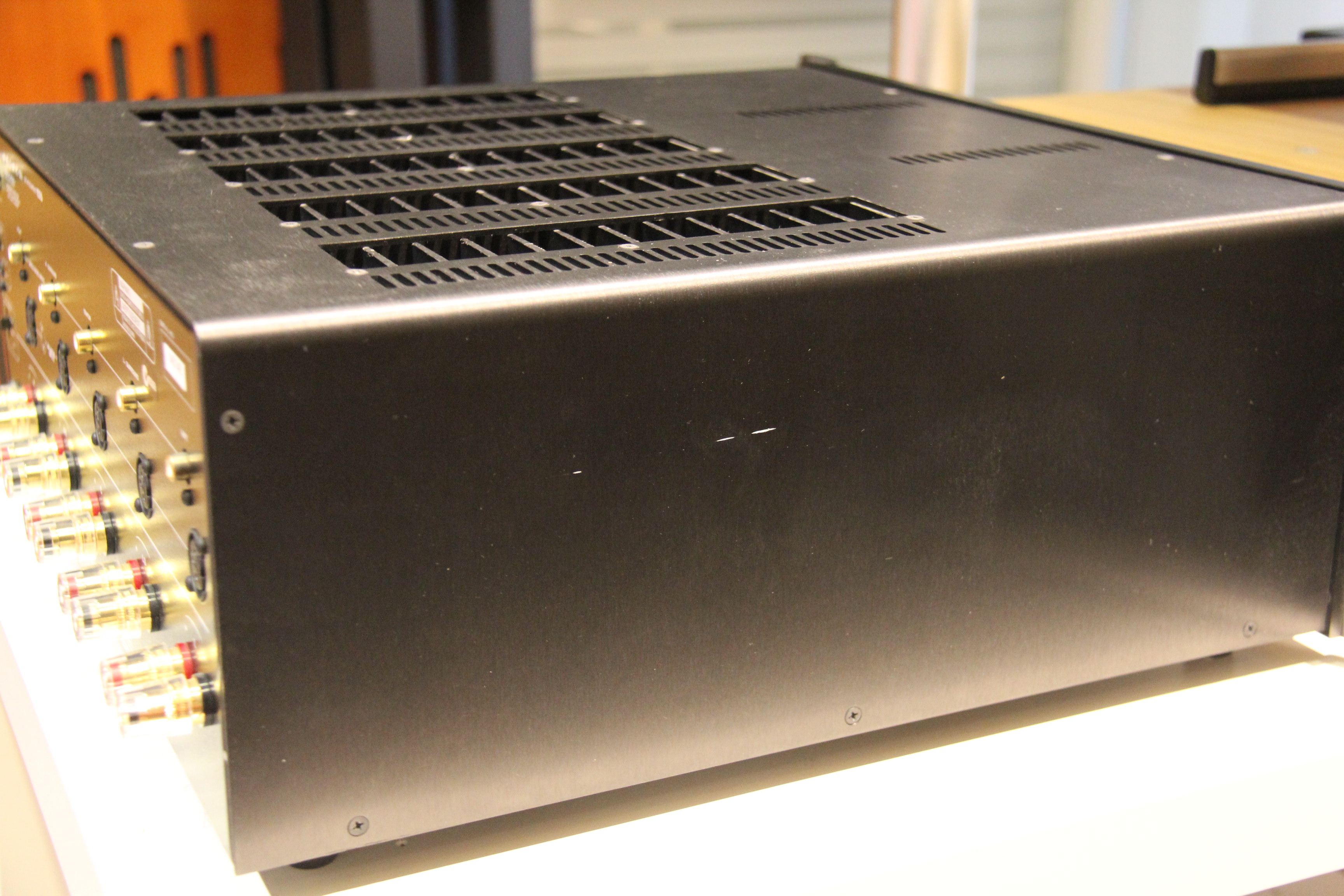

Item Condition: Trade in, a few scratches at one side.
Shipping Options: Pickup available and you can audition.,Shipping is available at agreed cost.
Suburb or Town: Notting Hill
State: VIC
Payment Method: Pickup - Cash, Paypal, COD Only
Reason for selling:
Further Information:
Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735
Like their larger and even more powerful siblings, A2 and A5 amplifiers are muscular in character and musical by nature. They are multi-talented performers more than capable of supplying the power behind the sonically demanding aspects of surround-sound home theater, or recreating, with remarkable finesse and transparency, the ‘immediacy’ of a live music performance. The secret behind their award-winning performance can be found in Anthem’s unwavering commitment to state-of-the-art design.
A2 and A5 amplifiers boast: completely modular construction; a four-layer circuit board topology; mirror-imaged, frequency-response channel matching; eight bipolar output devices per channel; hand-matched complementary input devices; massive toroidal power supplies; oversize convection-cooled aluminum heatsinks; and a no-fuse design strategy.
Specifications
GENERAL

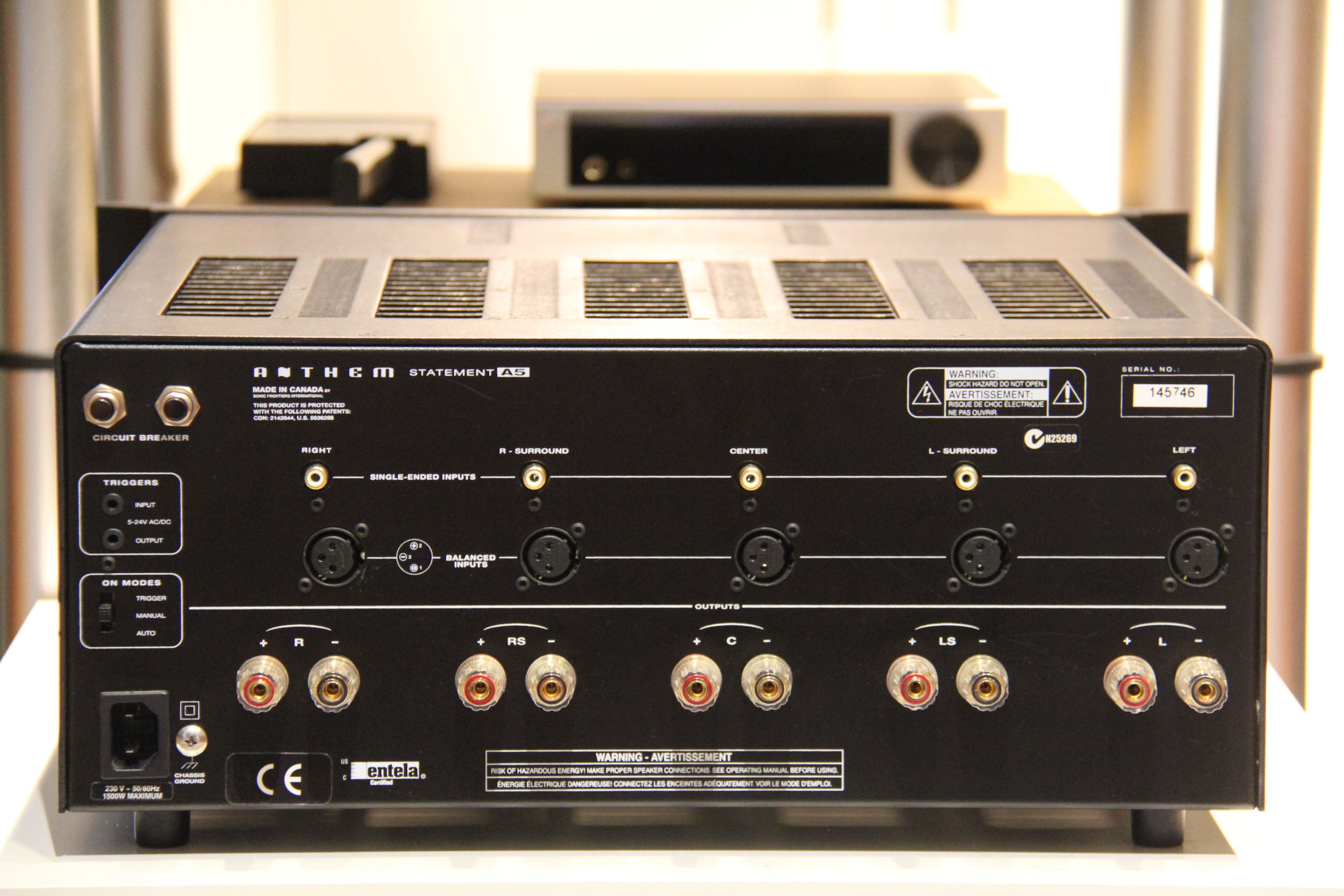

Inputs 5 Single-Ended, 5 Balanced, 1 Relay Trigger (3.5 mm Mono Jack)
Outputs 5 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)
THD+N (200 W into 8 Ω) 0.001% at 1 kHz, 0.03% at 20 kHz
IMD 0.0005% (CCIF, 225 W into 8 Ω)
POWER BANDWIDTH 10 Hz to 100 kHz
(+0 -3 dB, 225 W into 8 Ω)
FREQUENCY RESPONSE 20 Hz to 20 kHz (+0 -0.15 dB),
5 Hz to 100 kHz (+0 -2 dB)
INPUT SENSITIVITY 1.5 Vrms in for 225 W out into 8 Ω
INPUT IMPEDANCE 10 kΩ (RCA), 15 kΩ (XLR)
DAMPING FACTOR 360 at 1 kHz (ref. 8 Ω)
S/N RATIO 120 dB, A-weighted (ref. 225 W)
CROSSTALK -78 dB at 1 kHz
VOLTAGE GAIN 29 dB
SLEW RATE 30 V/µs
SWITCHES
Front Panel Power (On/Off)
Rear Panel On/Off Modes (Trigger, Manual, Auto), Inputs (RCA, XLR)
POWER OUTPUT
(Continuous RMS, 20 Hz to 20 kHz, <0.1% THD)
Impedance 8Ω 4Ω 2Ω
# of Channels Driven 1 All 1 All 1 All
225 W 180 W 370 W 265 W 535 W 340 W*Special Test Conditions Required for 2 Ω
POWER REQUIREMENTS
SUPPLY VOLTAGE 105 to 130 V, 60 Hz
POWER CONSUMPTION 1800 W
DIMENSIONS
Height 7-5/8 inches (19.4 cm) including feet
Width Faceplate 19-1/4 inches (49 cm),
Chassis 17-1/4 inches (43.8 cm)
Depth 19-3/8 inches (49.2 cm)
Weight (unpacked) 57 lb (25.9 kg)
