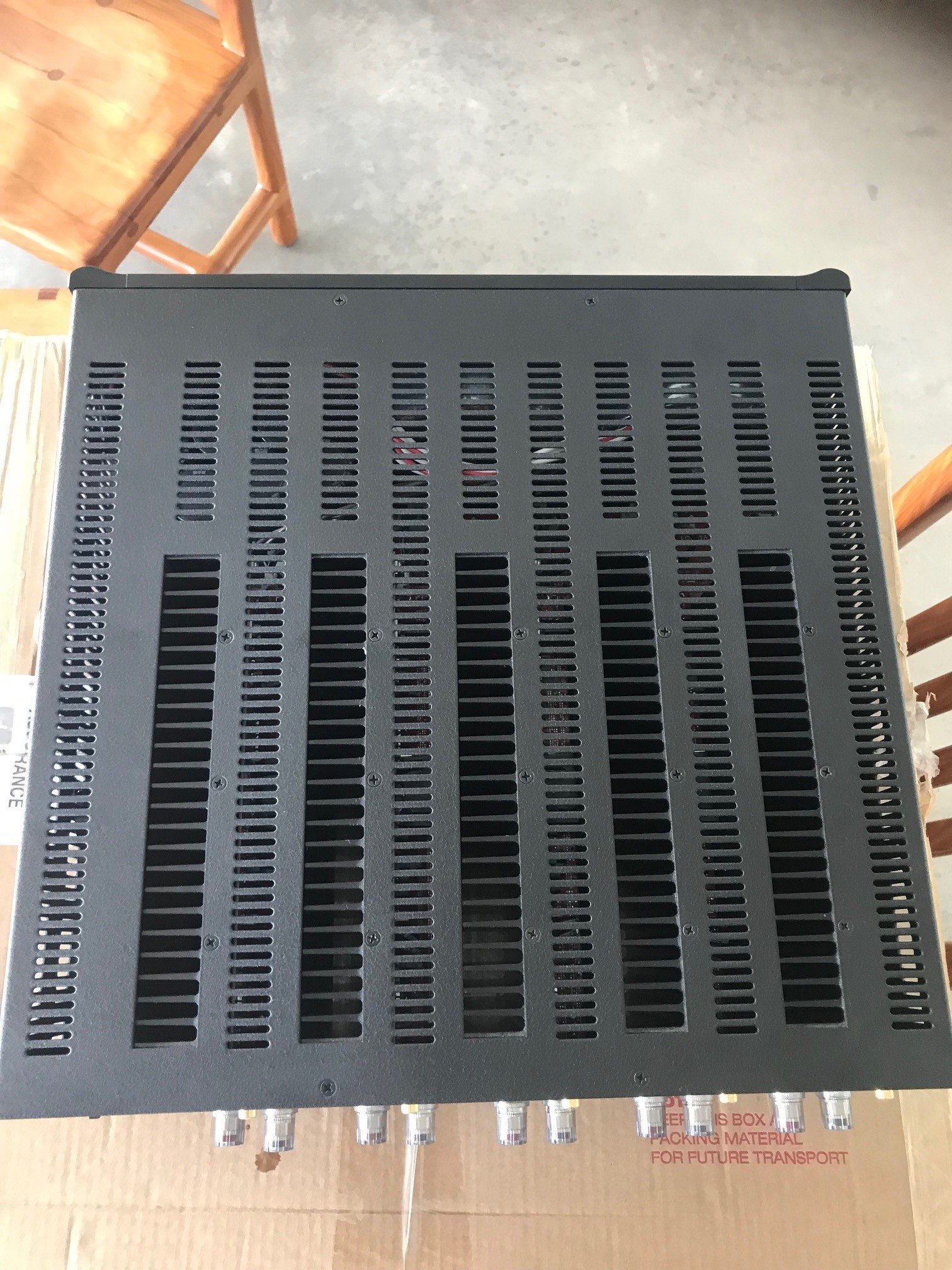

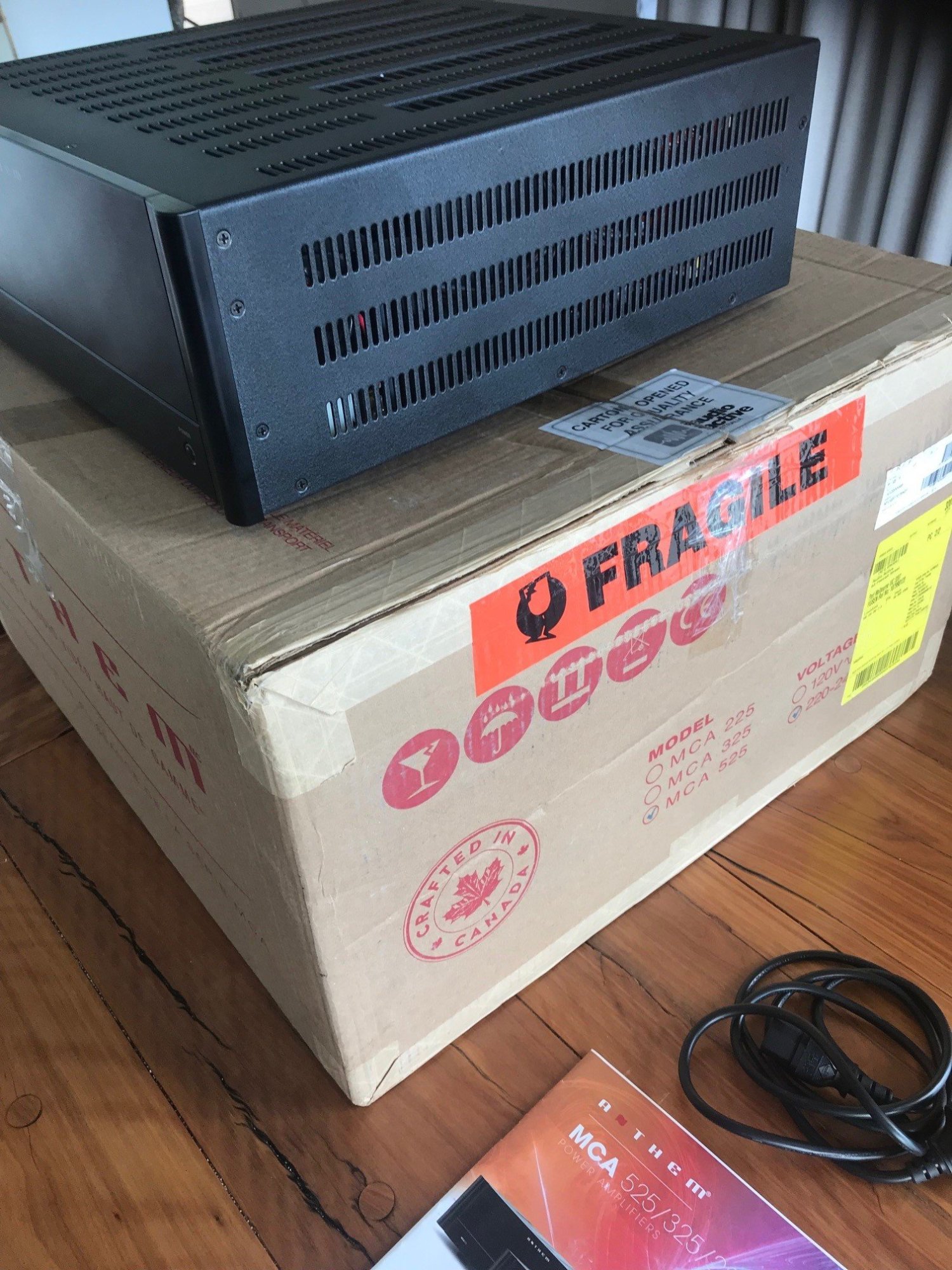

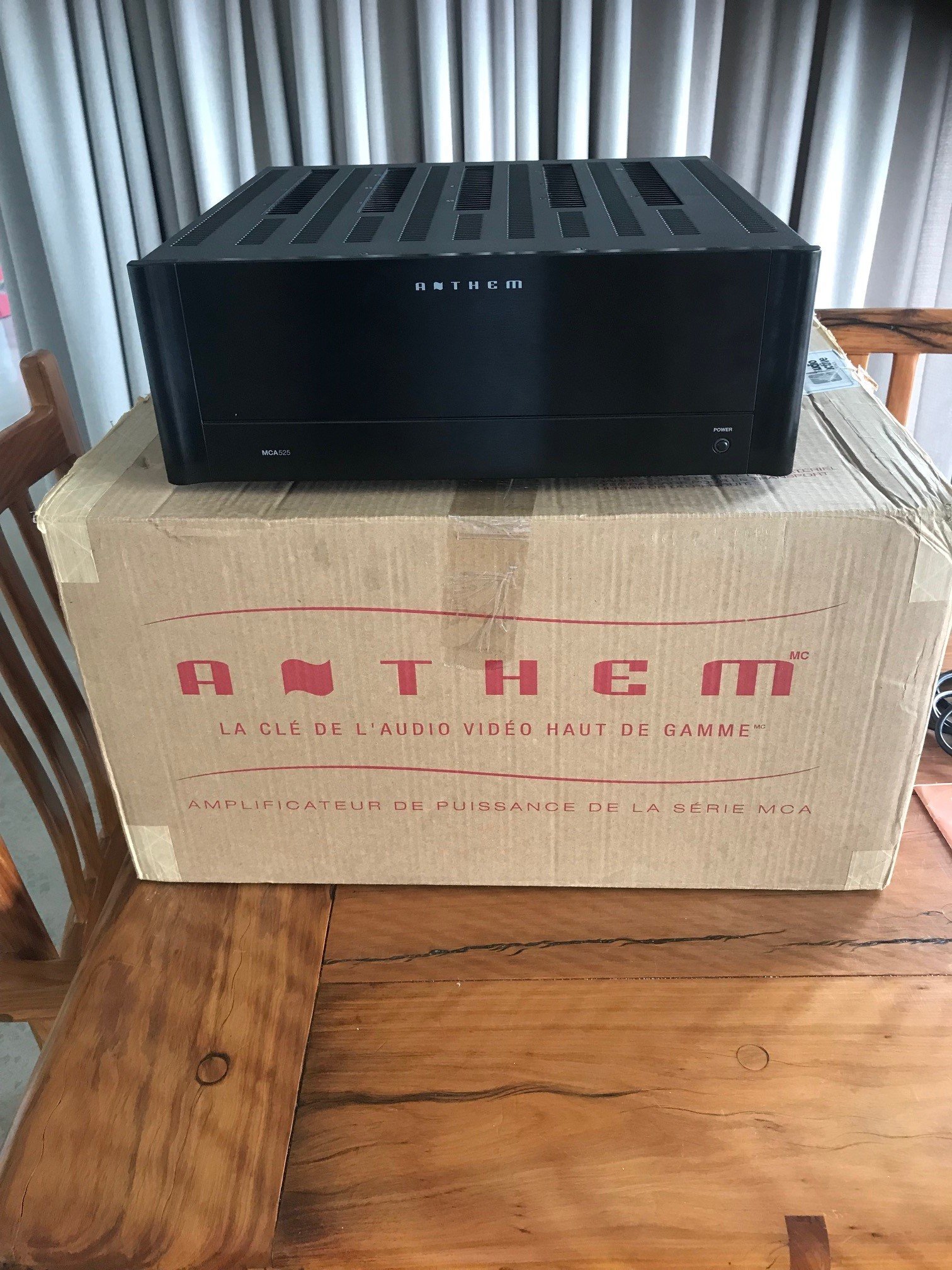

Anthem MC525 5 channel amplifier

Very High quality, multi-channel amplifier crafted by Anthem in Canada.

Really well built and powerful sound delivery.  Uses custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry to deliver clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum

Incredibly stable even into difficult, low-impedance speaker loads, making this a superb-sounding dynamo. Has been a super reliable performer

POWER OUTPUT (PER CHANNEL)
(Continuous RMS, 20 Hz - 20 kHz, <1% THD)

Impedance

8Ω - 225 W

4Ω - 400 W

2Ω - 600 W

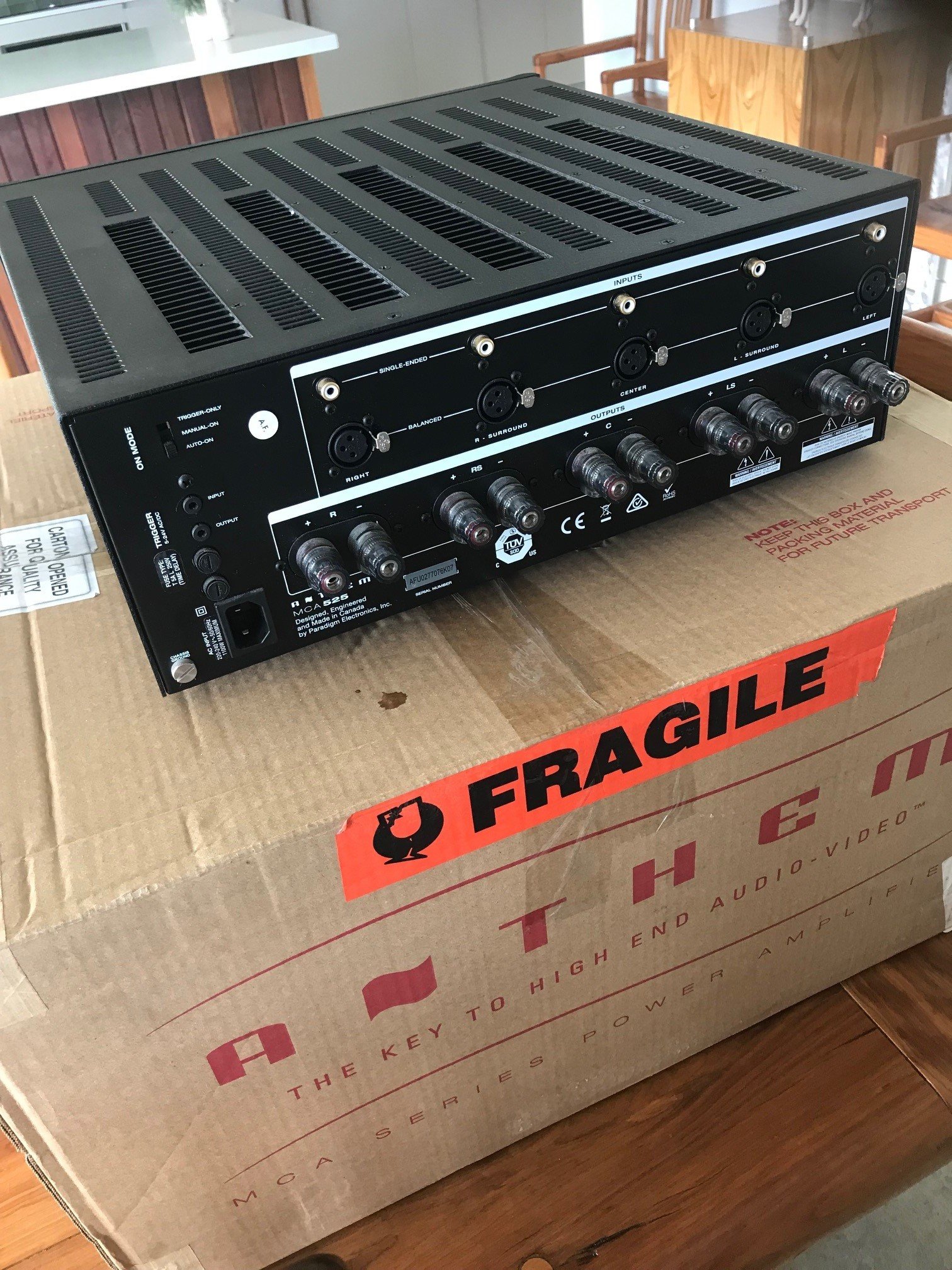

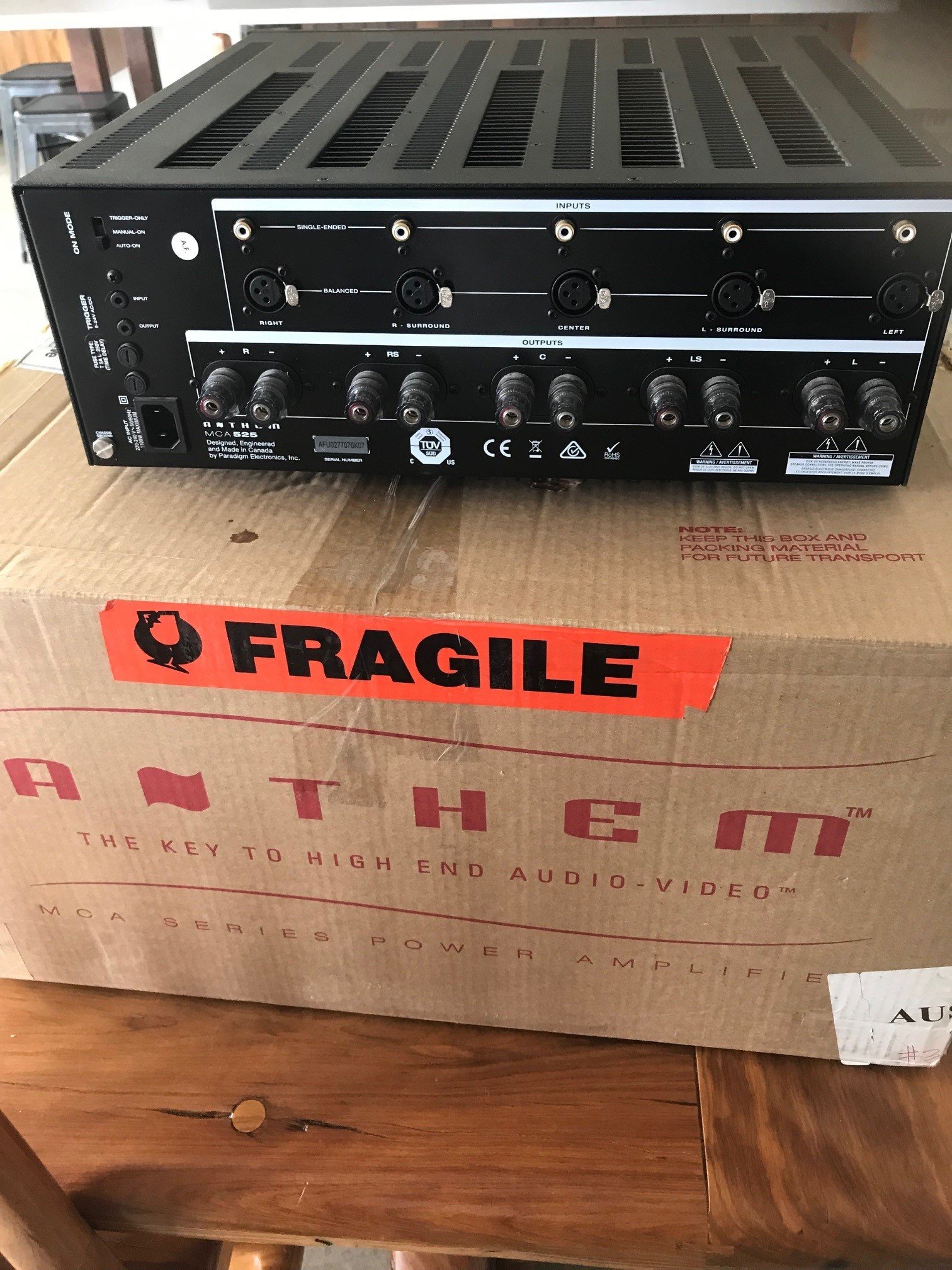

INPUTS / OUTPUTS

Inputs Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)

Outputs Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)

SWITCHES

Front PanelPower (On/Off)

Rear Panel3 On/Off Modes (Trigger, Manual, Auto)

THD at 100W

at 1 kHz0.0010%  at 20 kHz0.015%

IMD at 100 W

ITU-R (19 kHz + 20 kHz)0.0005%

SMPTE (60 Hz + 7 kHz)0.002%

Frequency Response, 20 Hz to 20 kHz

open circuit± 0.1 dB

8Ω± 0.1 dB

4Ω± 0.1 dB

2Ω± 0.2 dB

OTHER SPECIFICATIONS

SNR, IEC-A, ref. 225 W120 dB

Power Bandwidth, -3 dB at 200 W into 8 ohms90 kHz

Slew Rate30 V/μs

Damping Factor, 20 Hz to 1 kHz 300

Channel Separation, 100 Hz to 10 kHz>65 dB

Input Impedance (RCA / XLR)10 kΩ / 15 kΩ

Input Sensitivity, 225 W into 8 Ω1.5 Vrms

Voltage Gain29 dB

POWER CONSUMPTION

 standby idle: W80,  typical: 550W, high output: 1200W

DIMENSIONS

Height 6-5/8" (16.9 cm)

Height with Rackmount Kit4U

Width 17-1/4" (43.9 cm)

Depth 18-1/8" (46 cm)

WEIGHT

61 lb / 27.5 kg

A perfect match for most home cinema systems including the class leading AVM 60 processor (also for sale in sepearate listing).
