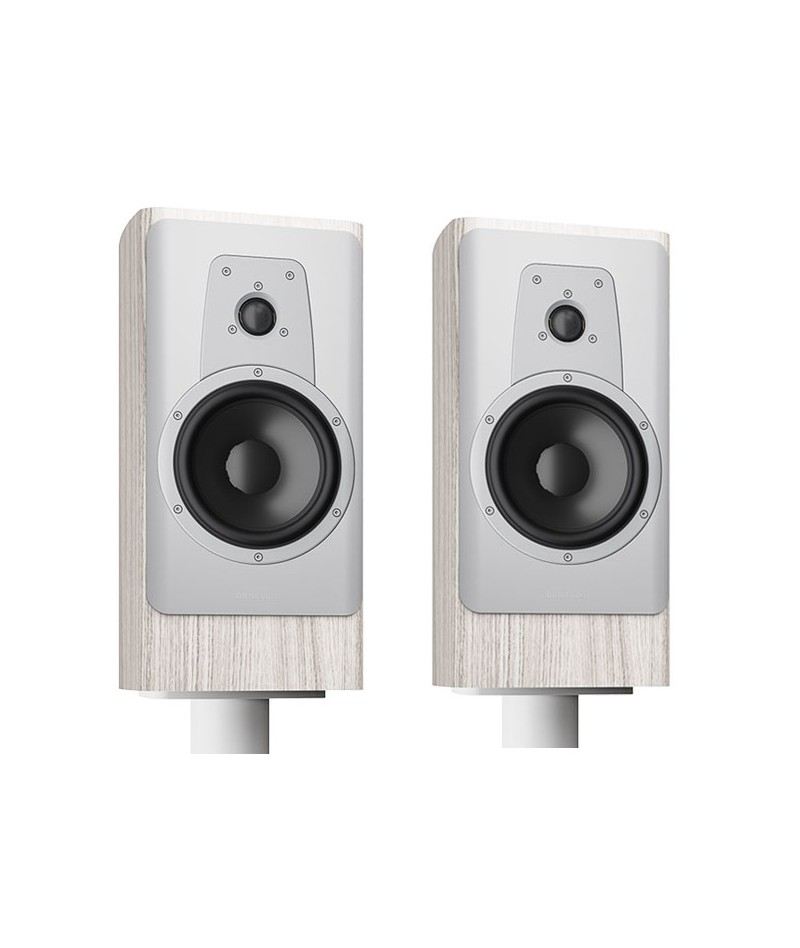

Dynaudio Contour 20 Bookshelf Speakers Ivory Oak Finish

Further Information:

Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735

It’s sweet-toned Esotar2 soft-dome tweeter has been a legend in its own right for years. It’s commonly regarded as one of the world’s best-ever drivers – and because of this position, we just had to give it another outing.
The extended-excursion 18cm woofer, though, is brand new. It’s powered by a lightweight aluminium voice-coil and a vented dual-ferrite magnet system.
It’s made from MSP – a material we developed ourselves, and have been using in our drivers since 1985. MSP gives exactly the right combination of stiffness and damping – which you’ll hear as exactly the right combination of power, finesse, and control. Just what a Contour speaker should have. But, we’ve taken it further: we’ve varied the diaphragm’s thickness across its surface, which gives even greater control over its sound.
Making a Contour without its signature baffle would be all-near impossible. But, there’s always room for improvement. The new baffle is made from a solid piece of aluminium and set into the cabinet. Its chamfer is included in the driver’s basket – which not only looks great, but also reduces unwanted high-frequency diffraction effects for clearer treble, and provides a solid foundation for the drivers to do their work. A solid foundation means improved high-volume performance at low frequencies.
And although we might have changed the cabinet’s shape, the new design tips a respectful nod to older Contours. Look at it from the top; you’ll see the old baffle design in its shape. But, it isn’t just for show – the new shape marries those aesthetics with cutting-edge acoustic physics. Its multilayered construction is extremely well-damped, which means the Contour’s sound goes exactly where it’s supposed to: forwards.
We’ve redesigned the internal wiring and crossover, too You won’t see what we’ve done, but you’ll hear the effect: amazingly clear sound, even off to the sides of the speaker

Specifications
Sensitivity 86dB (2.83V/ 1m)
IEC power handling 180 Watts
Nominal impedance 4 ohms
Frequency response 39Hz – 23kHz (±3dB)
Box principle Rear ported bass reflex
Crossover 2 way
Crossover frequency 2200 Hz
Crossover slope 2nd order
Specification sheet for Contour part 1
Woofer 18cm MSP cone
Tweeter 28mm soft dome
Weight 15.5 kg
Dimensions (W x H x D) 215 x 440 x 360mm
