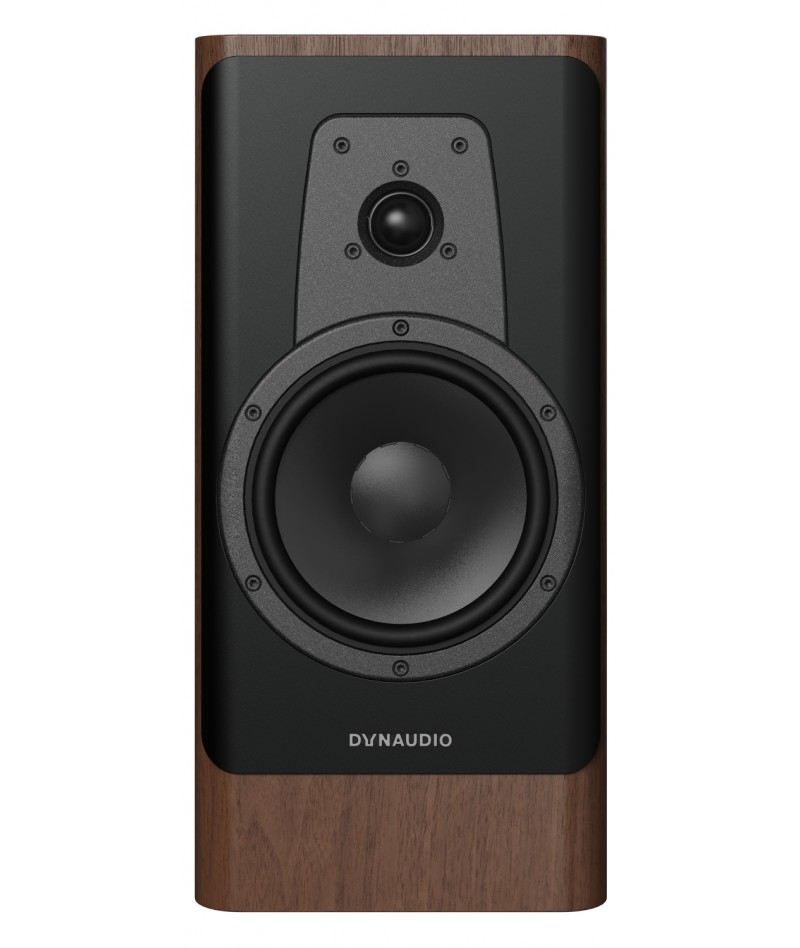

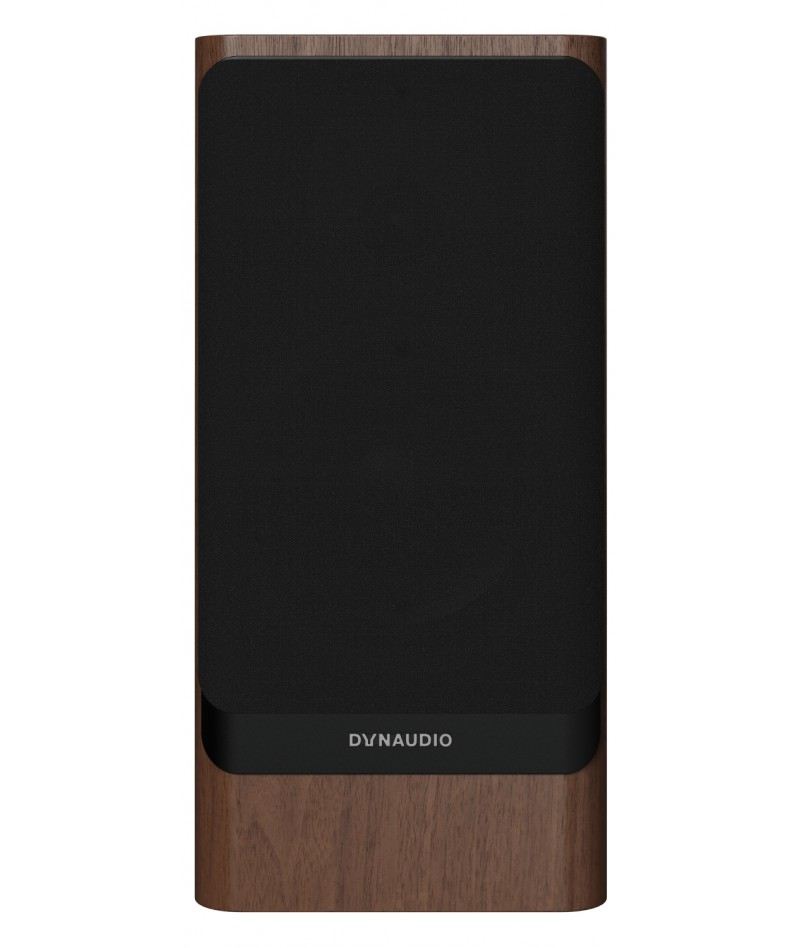

Dynaudio Contour 20i Bookshelf Speakers

Further Information:

Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735

The woofer has been tweaked, too. It’s still made of our own Magnesium Silicate Polymer (MSP) material, of course, it’s still powered by a lightweight aluminium voice-coil, and it still uses a vented dual-ferrite magnet system – but behind the distinctive black cone lurks a brand-new spider suspension. This one is made from aramid fibres, and retains the ingenious structural properties from before (the ribs are of varying width to give even finer control over the cone’s excursion). You’d be surprised at the sonic difference such a small change can make…
And because those driver changes provide an inherently flat frequency response, we’ve been able to simplify the crossover too. It’s a thing of beauty, isn’t it? There’s no longer any need for extra impedance-correction circuitry – which means an even more direct signal path. And cleaner sound.
Making a Contour without its signature baffle would be like making a car without wheels. Unthinkable. But there’s always room for improvement – and our designers love to stretch their legs. This baffle is aluminium, and set into the cabinet. Its chamfer is included in the driver’s basket – which not only looks great, but also reduces unwanted high-frequency diffraction effects for clearer treble, and provides a solid foundation for the drivers to do their work. A solid foundation means improved high-volume performance at low frequencies, too (although your neighbours might not thank us for that).
Even the internal damping is brand-new – using lessons learned from Evoke and Confidence.

Specifications
Sensitivity: 86dB (2.83V / 1m)
IEC Power Handling: 180W
Impedance: 4 Ω
Frequency response (±3dB): 39Hz – 23kHz
Box Principle: Bass-Reflex Rear Ported
Crossover: 2-Way
Crossover Frequency: 2200Hz
Crossover Typology: 2nd Order
Woofer: 2 x 18cm MSP Cone
Midrange: –
Tweeter: 28 mm Esotar 2i
Weight: 14kg | 30 7/8lb
Dimensions (WxHxD): 215 x 440 x 360 mm | 8.5 x 17.3 x 14.2 in
Dimensions with Feet/Grille (WxHxD): 215 x 440 x 396 mm | 8.5 x 17.3 x 15.6 in
