Hi-Res Streamer and DAC

2 years ago 273

Item Condition: USED but as new

Shipping Options: Pickup available and you can audition.,Shipping is available at agreed cost.

Suburb or Town: Endeavour Hills

State: VIC

Payment Method: PayPal, EFT, Cash on Pickup

Reason for selling: NLR

Further Information:

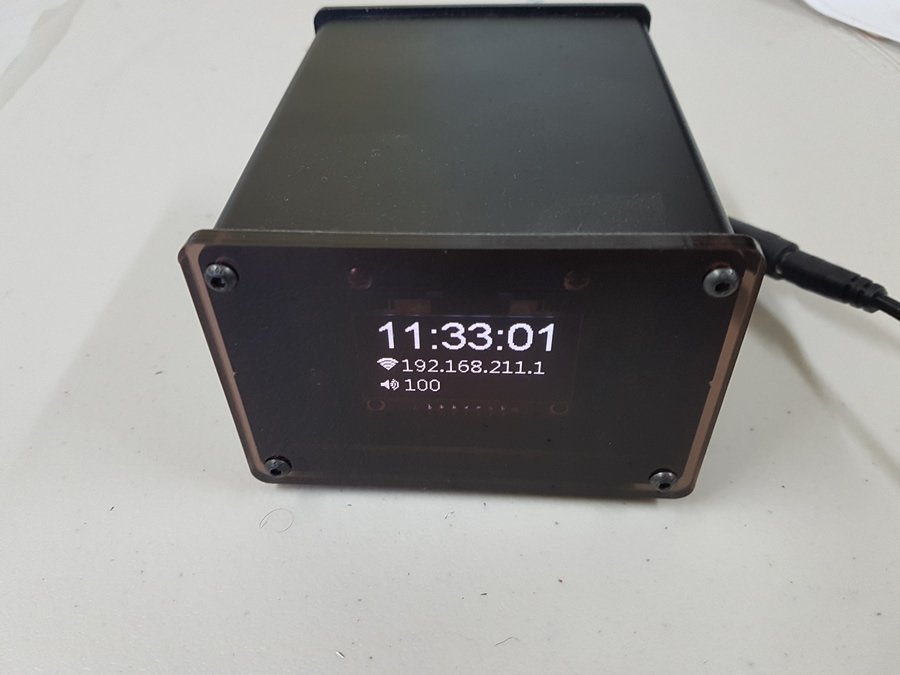

Its dimensions of 60 x 90 x 120 mm allow the RaspDAC Mini to fit easily into your audio environment, regardless of size and complexity.

Preinstalled Volumio based, but other Raspberry Pi media such as Moode, etc can be installed.

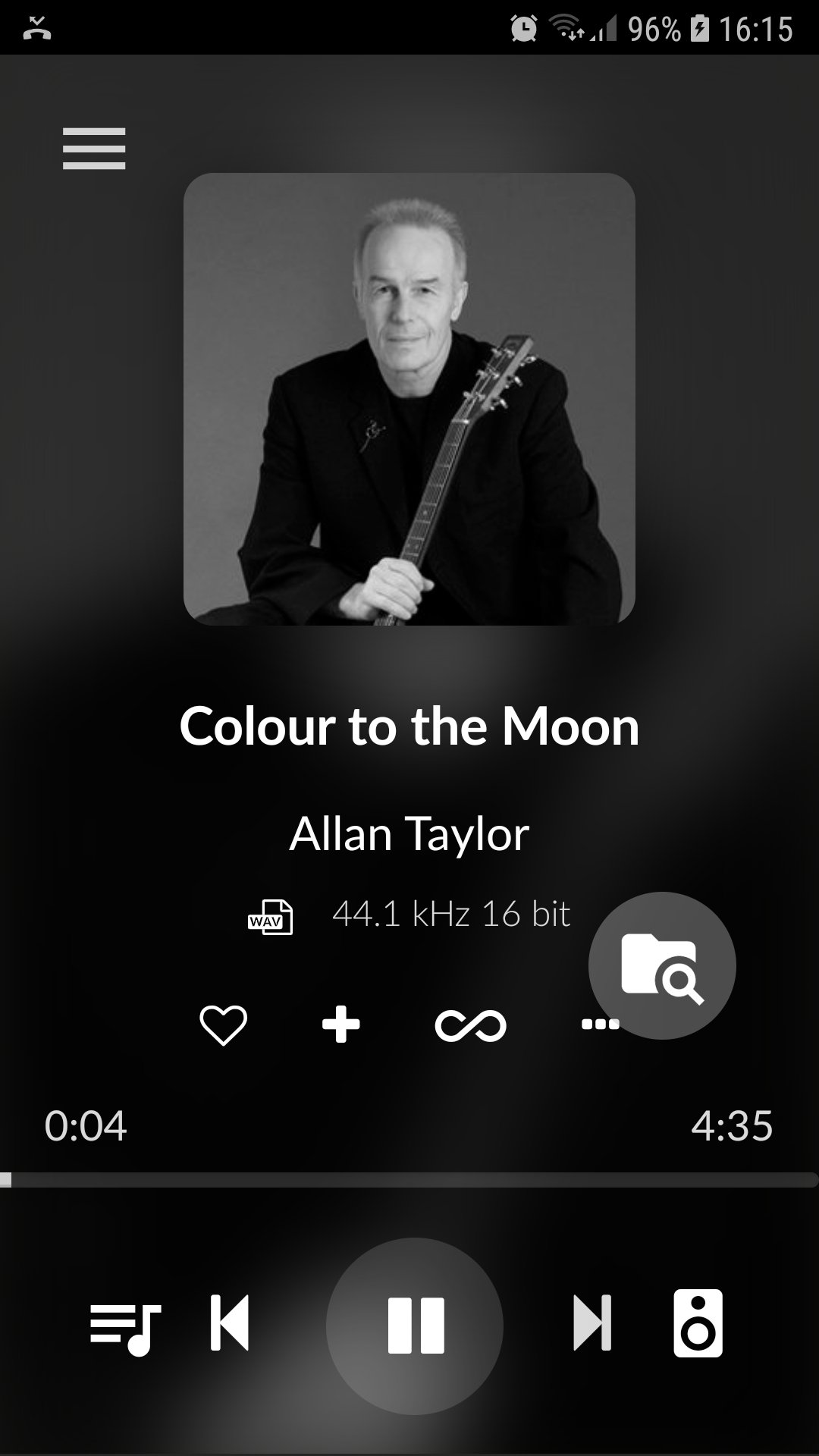

No software/AP required. Unit has an in built web server, so pick up any device - tablet, PC, phone and just type in the IP address and you have full control.

Can play USB hard drives, network streamed, Tidal Connect, Qobuz Connect. Access to virtually all web streamed radio stations, 24/7.

All decoding operations are made thanks to ESS Sabre ES9038Q2M DAC Chips.
This DAC works with its own power stage with DC DC converter and integrated linear regulators and includes an anti-pop relay.
Able to play 32bit 384kHz.
DSD files are also supported up DSD128 (DOP).

Remote control supplied for volume/source selection.

Requires a USB-C power supply

The analog output stage is based on two bipolar operational amplifiers NJM 2114 fed with 9V. A third OPA of the same type serves as a buffer.

This configuration ensures optimal resolution and a very stable output signal.

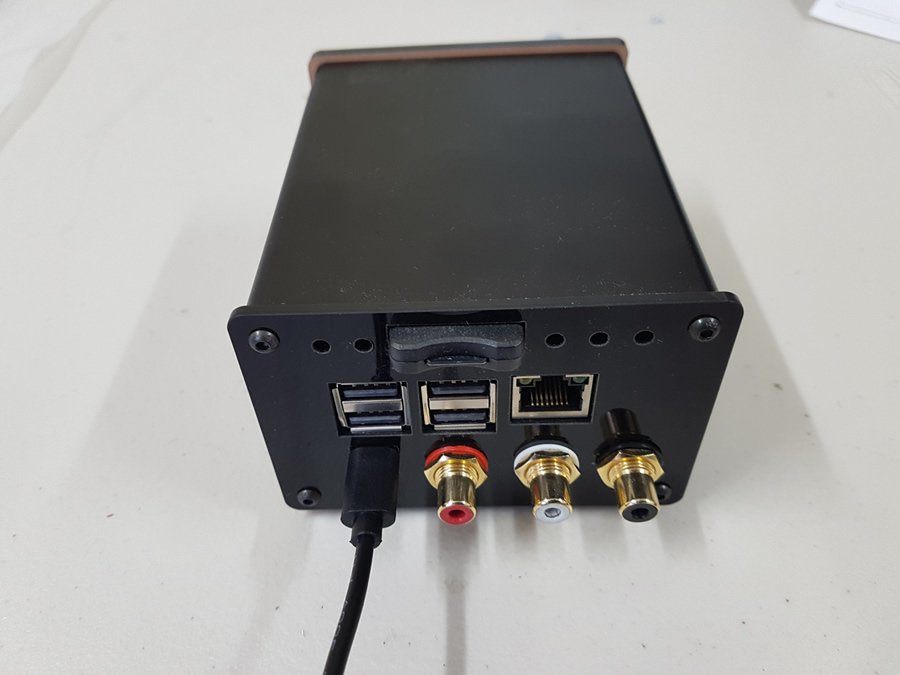

By combining the ports of a Raspberry Pi with those of the ES9038 SABRE card, the device now offers an impressive connectivity.

The Raspdac Mini has 4 USB-A ports to which the user can plug a hard disk, a USB drive or even a USB CD drive.

Of course, the device is also perfectly at-ease when it comes to play online hosted files through a wired network (RJ45) and non-wired (Wifi / Bluetooth).

The Mini RASPDAC simplifies your audio setup with an extra S / PDIF input port that can connect an extra digital source (CD player, television, gaming platform ... etc).

SPECIFICATIONS

Inputs: 4x USB 2.0-A, 1x Coaxial, 1x RJ45, 1x Micro SD

Outputs RCA Stereo

Supported audio formatsUp to 32bit 384kHz
DSD (DOP) 128

dynamic range: 129dB

THD + N-120dB

SoCBroadcom BCM2837B0

CPUARM Cortex-A53 1.4Ghz

GPUVideoCore IV

Power supply: USB-C (5V) (required)

DimensionsHeight: 60mm Width: 90mm Depth: 120mm

Weight470g
