Hypex nCore NC500 Stereo Amp Built by KustomDek

Further Information:

Bought from Phil of KustomDek in March 22 as a summer amp. Was originally listed for sale end of November 22 prior to my house move, however pulled from sale as I discovered my main amp’s power caps were leaking & needed to be re-capped. Since used as my stand in amp for the past 9 months, an average of 2-3 hours a week. Since my main amp is most likely not repairable I’ve decided to sell up everything for a change in direction.

I’ve been impressed with modern Class D implementations, have compared this amp with a couple of traditional Class AB amps many times it’s price (my ML336 & Cambridge Edge W) and it’s very close or better. It’s convinced me that for most people with reasonable to drive speakers Class D is the way to go.

I’ve priced this to sell, so no low-ball offers please. If you are based in Melbourne & not too far away from me we can talk about you trying this in your system.

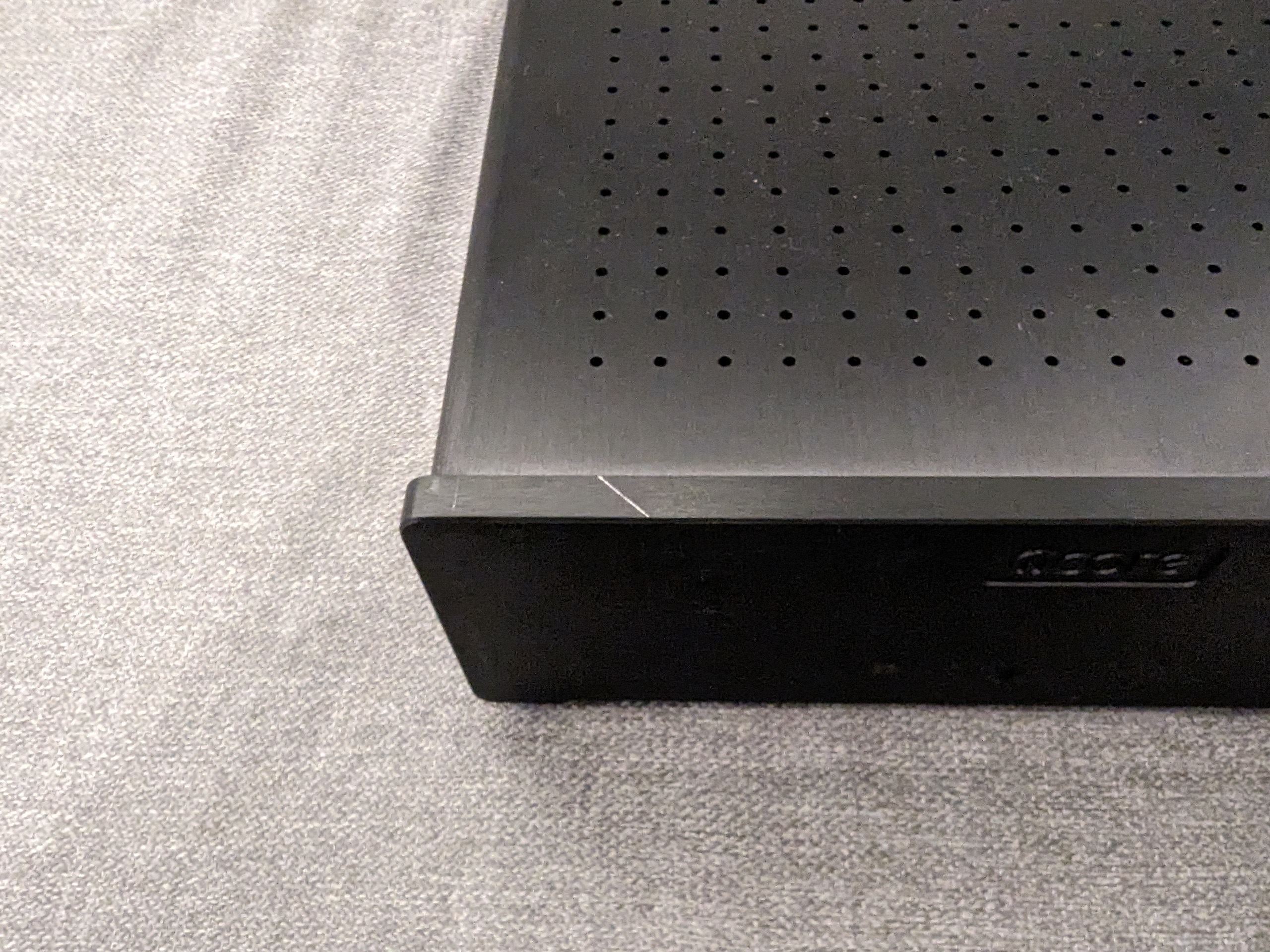

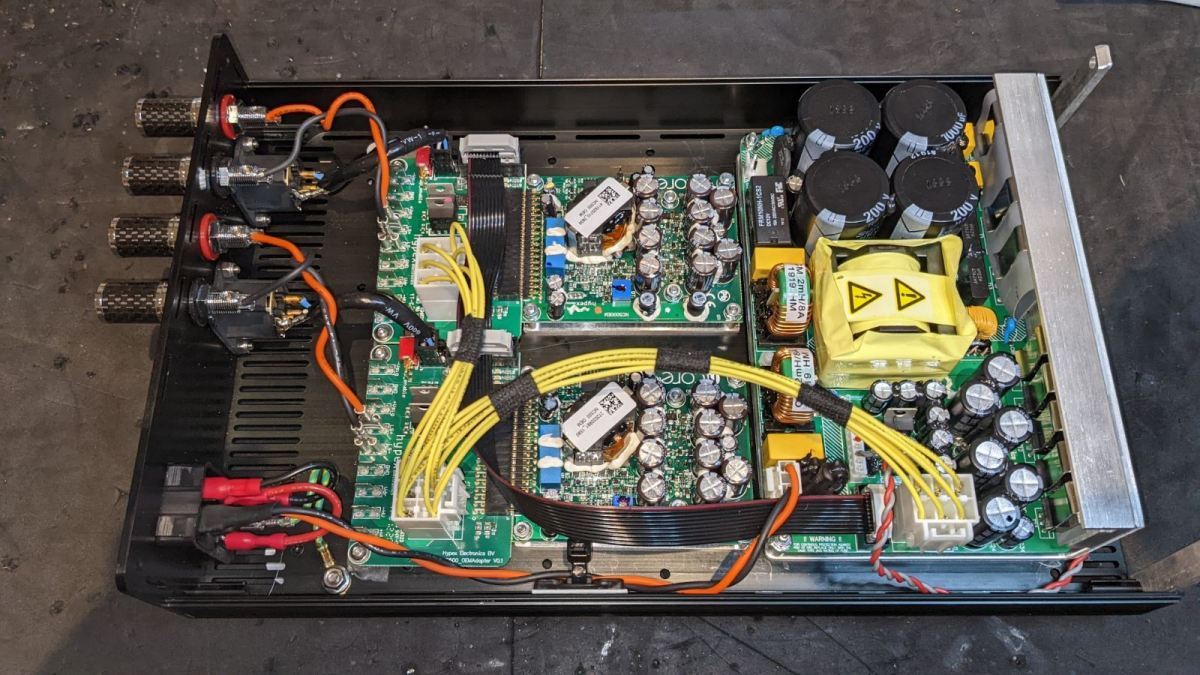

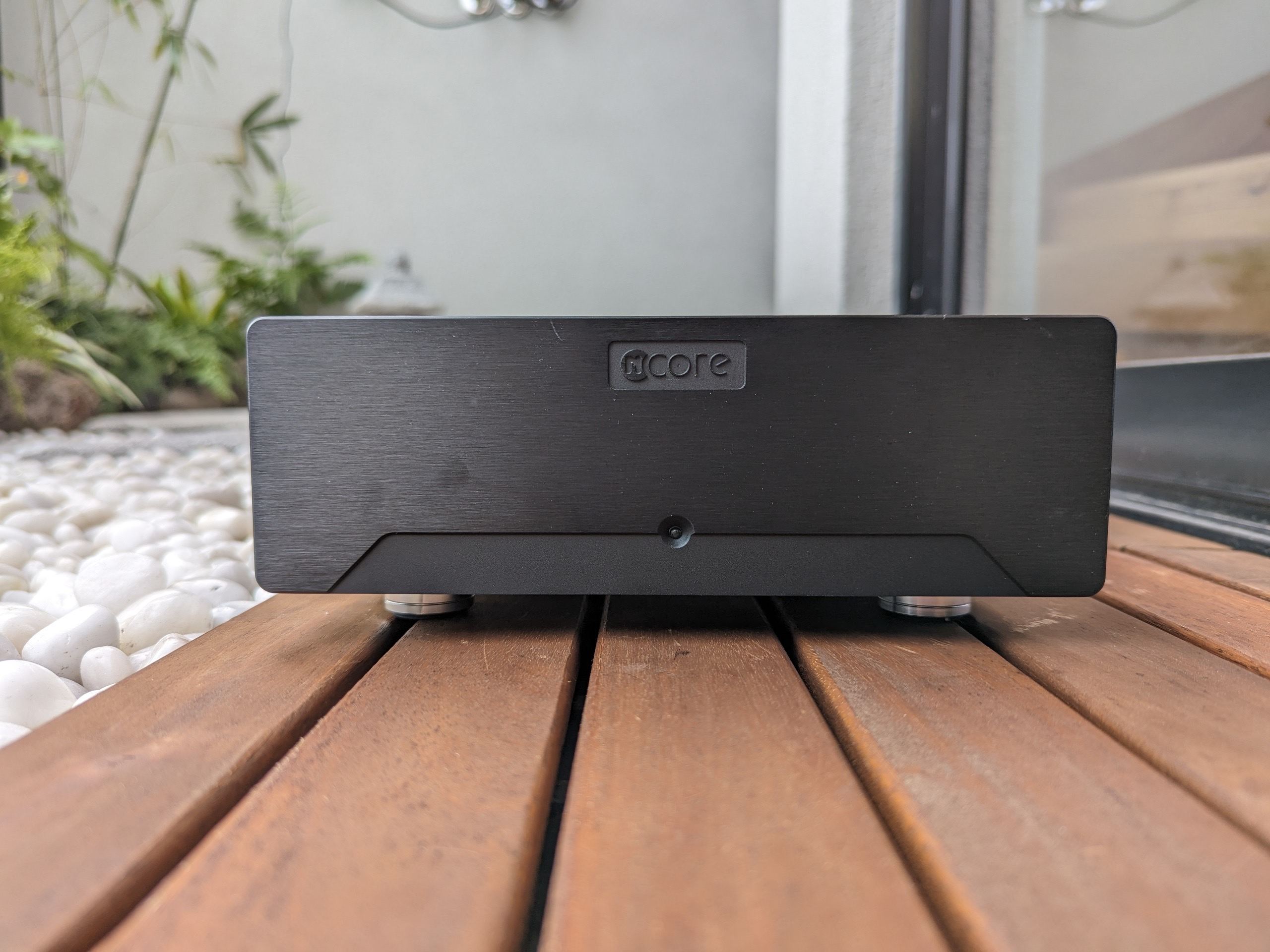

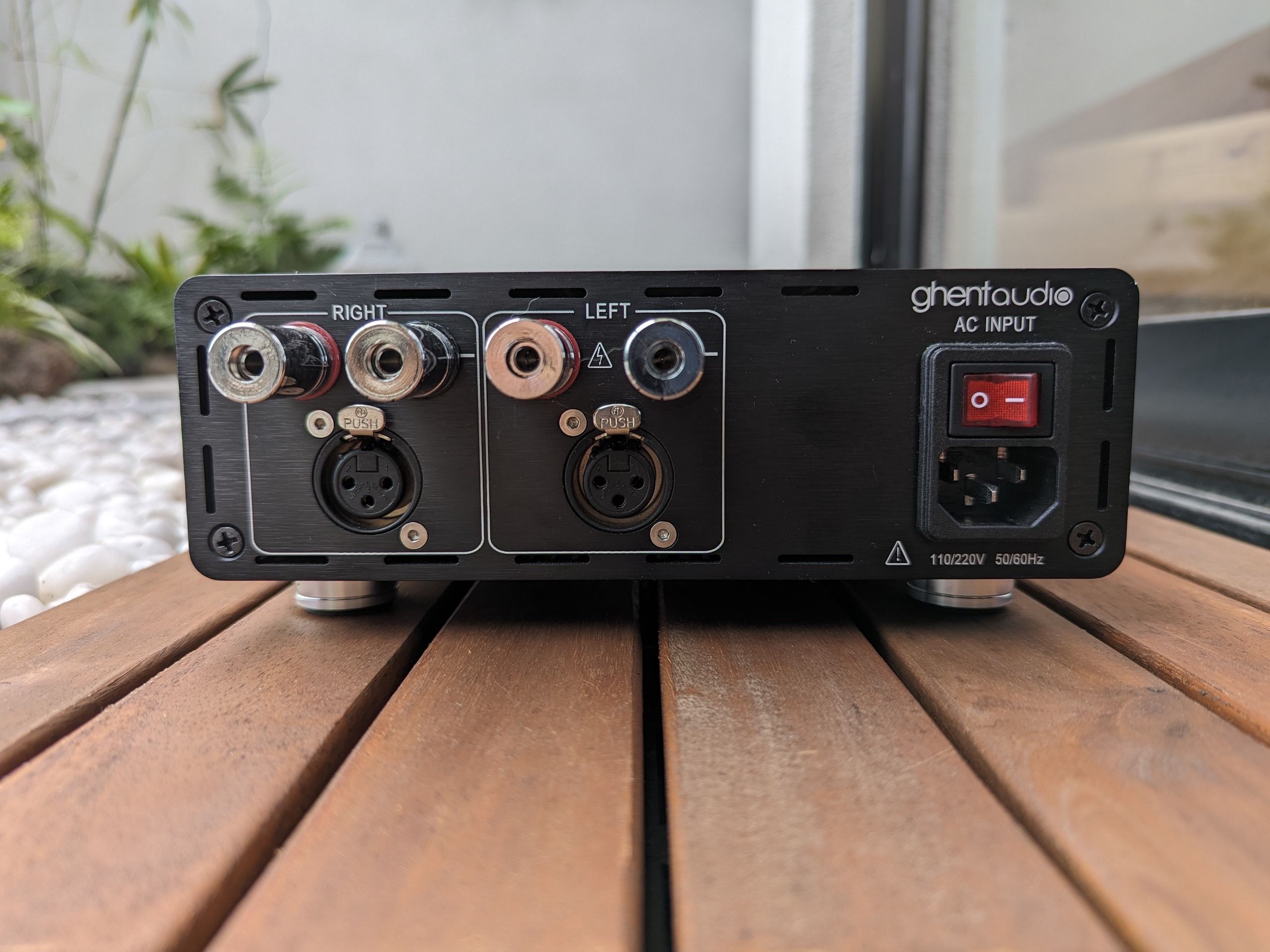

Small scratch on the top left front corner, and small mark on the rear right corner. Shown on last 2 photos. First 2 are more recent photos, 3rd photo is the internal shot from Phil’s original ad.

Hypex  SMPS1200A700 https://www.hypex.nl/product/smps1200a700/137

Hypex NC500 https://www.hypex.nl/product/nc500-oem/50

Ghent Audio Case 200mm W x 315mm D x 80mm H (inc Feet)

2 x Hypex NCore NC500 Modules + 1200-1500w PSU

•        SNR 135dB

•        Distortion: THD+N - - 0.001 % 20Hz

•        Frequency Response: 0 - 50k Hz +0/-3dB

•        Low Distortion: THD+N - - 0.001 % 20Hz

•        High Input Impedance 51K

•        Input Sensitivity 8ohm 2.52Vrms 10.24dBu

•        XLR Balanced Input

•        26 dB Gain

•        Ultra High Damping Factor

•        High Current Output Capable of driving 2ohm for the most Demanding of Speakers.

•        550W 2ohm

•        700W 4ohm

•        400W 8ohm

•        Frequency Response: 0 - 50k Hz +0/-3dB
