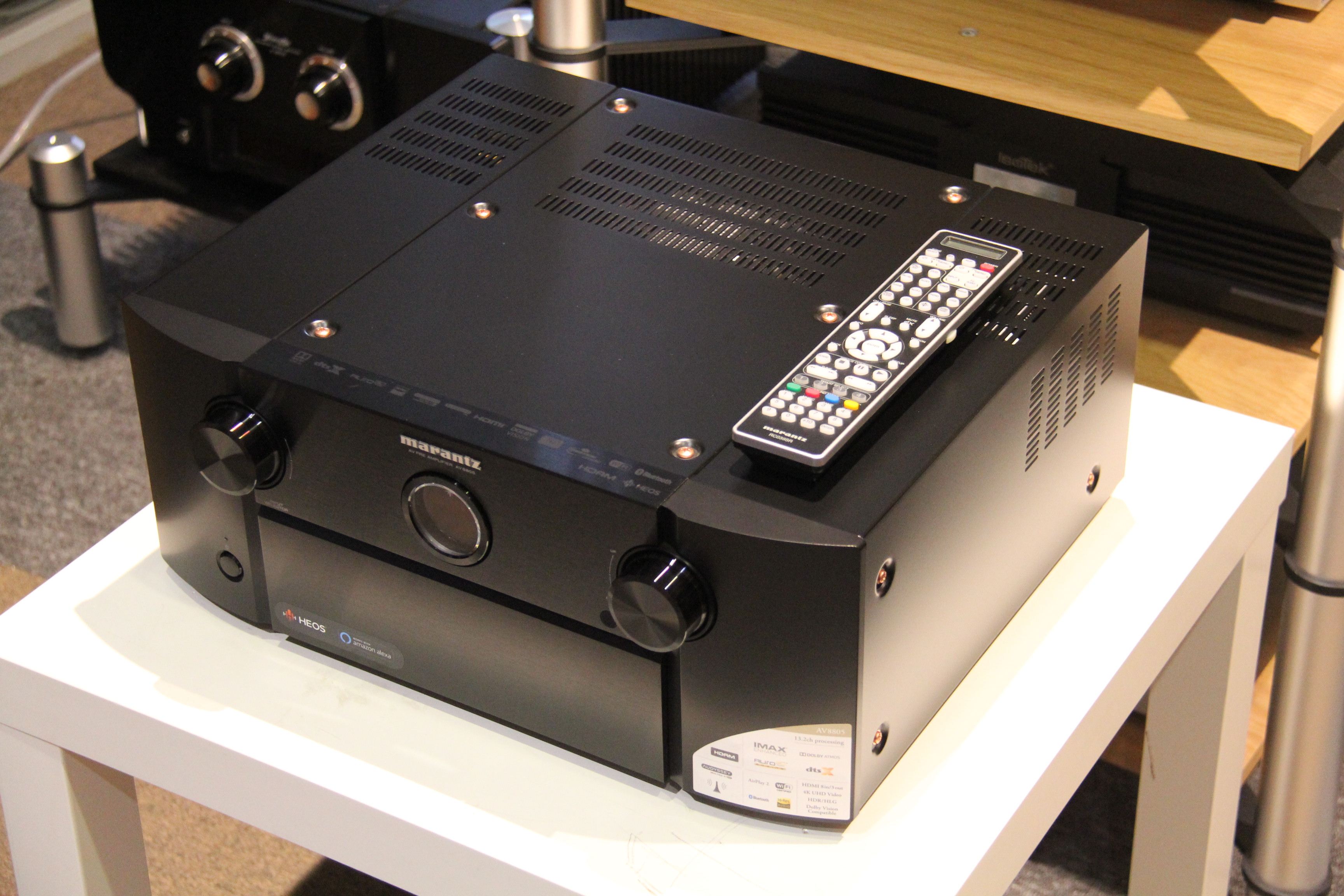

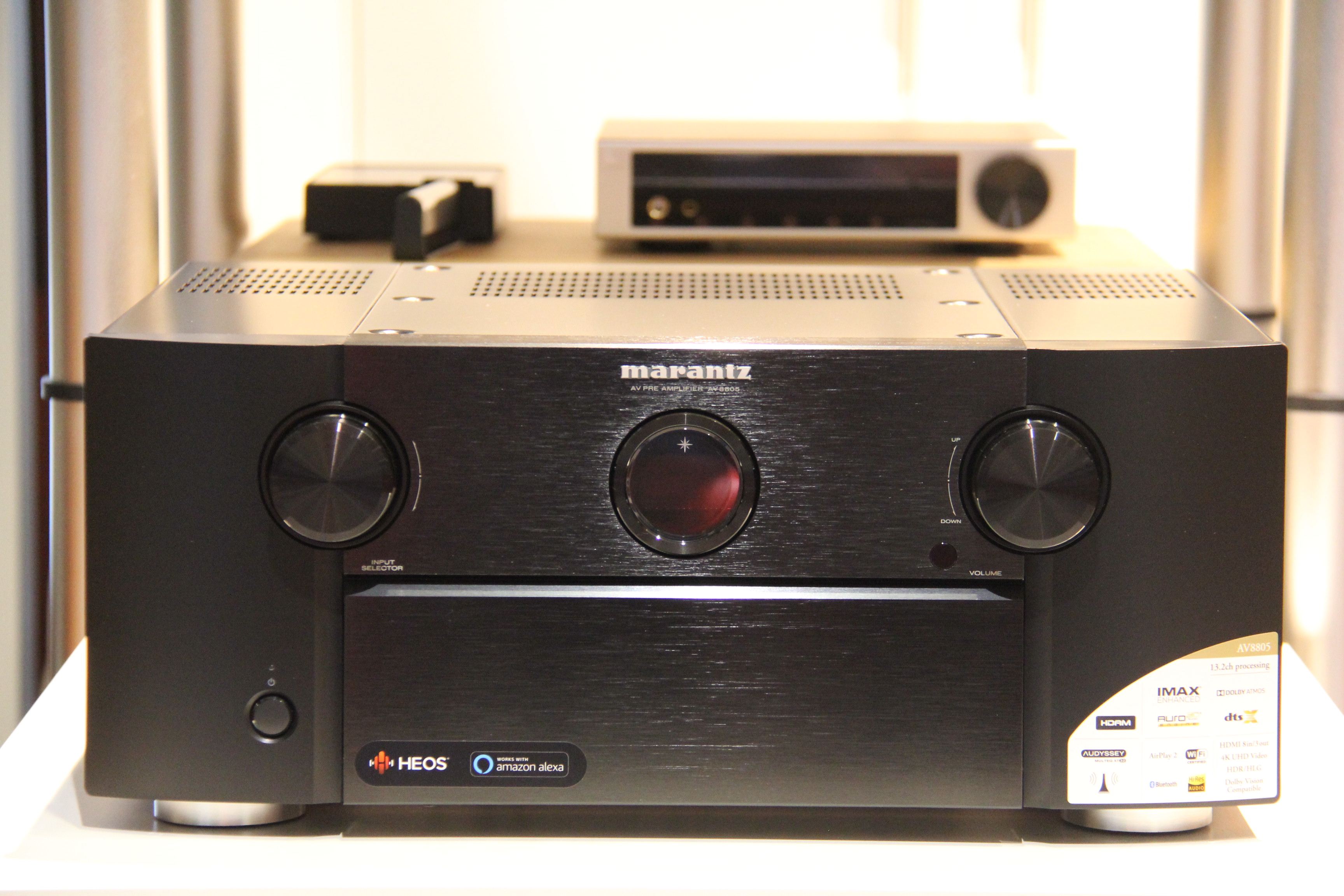

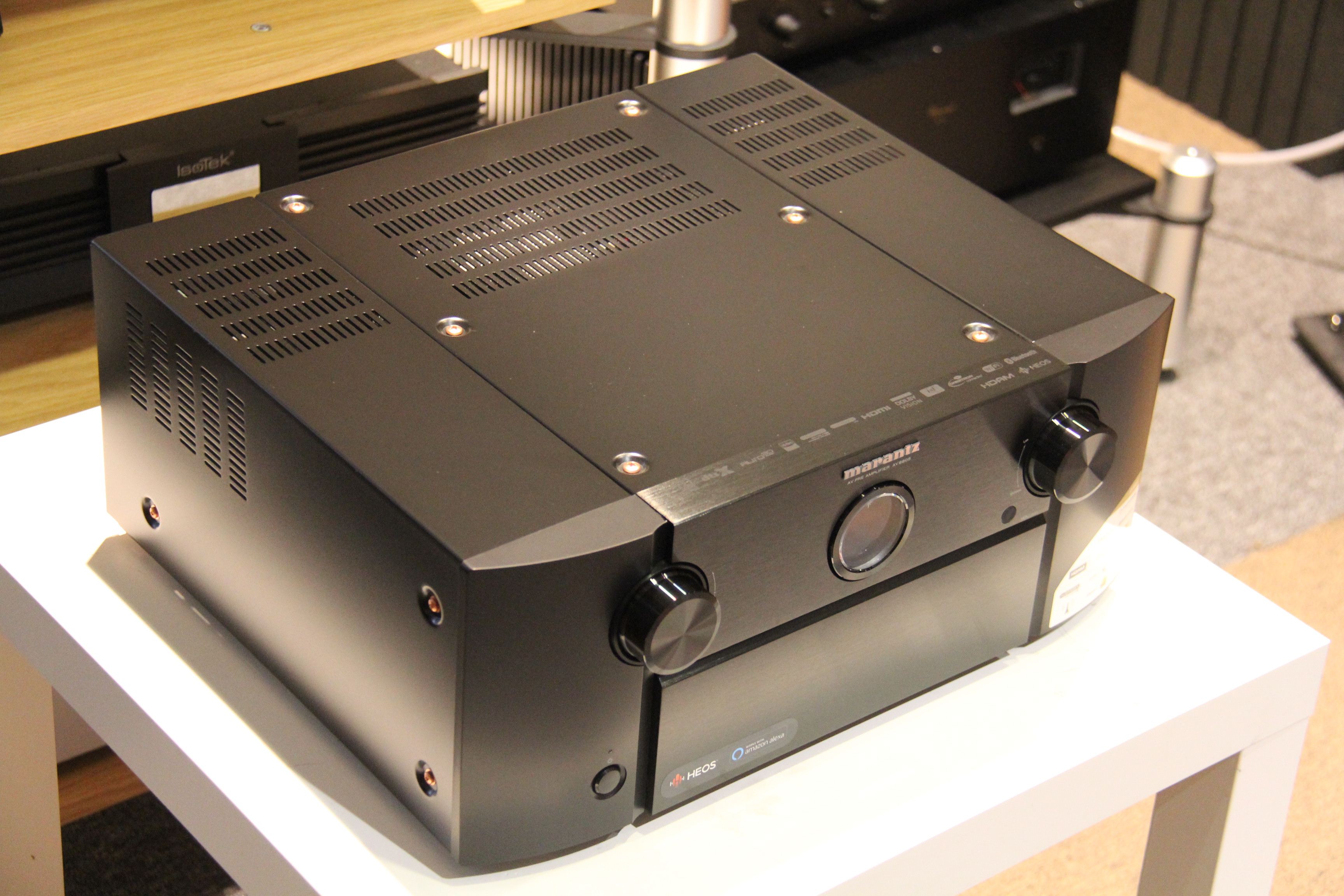

Marantz AV8805 13.2 Channel AV Preamplifier

Further Information:

Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735

The World’s First 13.2 Channel Full 4K Ultra HD Network AV Surround Preamplifier with HEOS. Control Your Music with Amazon Alexa Voice Commands. The AV8805 is the most powerful Marantz home theater unit. Connect all your devices and bring to life your content with smooth, crystal clear picture and sound quality.
Sophisticated Engineering
The 13.2 channel AV8805 with 15.2 channel XLR and RCA outputs provide a flexible yet detailed pre-amplifier stage for the advanced home cinema enthusiast. Enjoy it with acoustically matching Marantz MM series power amplifiers, like the MM8077, and immerse yourself in three-dimensional audio provided by the latest integrated surround formats, including Dolby Atmos, DTS:X and Auro-3D. Auro-3D will be enabled via a future firmware update at no additional charge. Marantz proprietary HDAM technology combines matched-precision discrete circuit elements with ultra-wide-end response for a wider soundstage and refined musical reproduction while built-in Bluetooth, Wi-Fi streaming and HEOS support, plus Apple AirPlay compatibility, let you stream and enjoy your favorite audio wirelessly.
Latest HDMI Connectivity; HDCP 2.2 Compatible
The Marantz AV8805 is future-compatible, with the latest HDMI and HDCP 2.2 specifications on all eight HDMI inputs. AV8805 supports 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through on every input. It is compatible with 4K Ultra HD Blu-ray disc players, set-top boxes and other 4K Ultra HD sources. Dolby Vision compatibility, HLG (Hybrid Log Gamma), new HDR format for broadcasting and pass-through capability are also supported.
ENGINEERED WITH CARE:
Advanced 32-bit D/A Conversion On All Channels
The Marantz AV8805 features premium grade AK4490 32-bit DACs on all channels and XLR input and outputs. There's a balanced XLR stereo input that's assignable as well as 15.2 balanced XLR outputs, which includes the two subwoofer outputs, front height/width outputs and overhead channels.
High-Grade Audio Components
The AV8805 features the latest Marantz proprietary HDAM (Hyper Dynamic Amplifier Module) components, which consist of matched-precision discrete selected circuit elements on a compact sub-board along with ultra-wide-band response (100 kHz, -3 dB) for an open soundstage with refined detail reproduction.

Features
Enjoy Immersive, Three-Dimensional Sound
Enjoy immersive, three-dimensional sound with the latest surround formats including Dolby Atmos (up to 7.1.6 or 9.1.4), DTS:X and Auro-3D (up to 13.1)
Powerful Processing In All 13.2 Channels
13.2 channel processing with 15.2 channel XLR and RCA outputs and flexible pre-amplifier stages — ideal for the advanced home cinema enthusiast
Room Perfect Sound With Audyssey MultEQ XT32
Audyssey MultEQ XT32, LFC, Sub EQ HT, Dynamic Volume and DynamicEQ deliver equalization to best suit your listening environment

Specifications
Multichannel Surround
IMAX Enhanced Yes
DTS HD Master / DTS:X Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos Yes / Yes (9.1.4 or 7.1.6)
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D Yes
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 13.2
Sound Enhancements
Copper Plated Chassis Yes
Power Transformer: Toroidal / EI Yes / No
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32 with LFC/Sub
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Network
Compressed Audio Enhancer: MDAX2 Yes
HEOS Multi-room and Streaming Yes
Network Audio Sharing Yes
Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming up to DSD5.6
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming Yes
AirPlay 2 Audio Streaming Yes
Internet radio Yes (TuneIn)
Spotify Connect / Deezer / Tidal / Napster / Pandora / Amazon Music / Soundcloud Yes / Yes / Yes / Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones Marantz 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back / Front 7 / 2
HDCP2.2 Support Yes
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analog -> HDMI Yes
Analog to HDMI Scaling 480i/576i up to 4K 60/50
HDMI to HDMI Scaling up to 4K 60/50
GUI Overlay on HDMI Yes
HDMI: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HLG / Dolby Vision Yes / Yes
3D Signal Pass-Through Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes
Multi-Room / CI
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines + port hole
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 3
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power off Yes
Sleep / Timer Yes

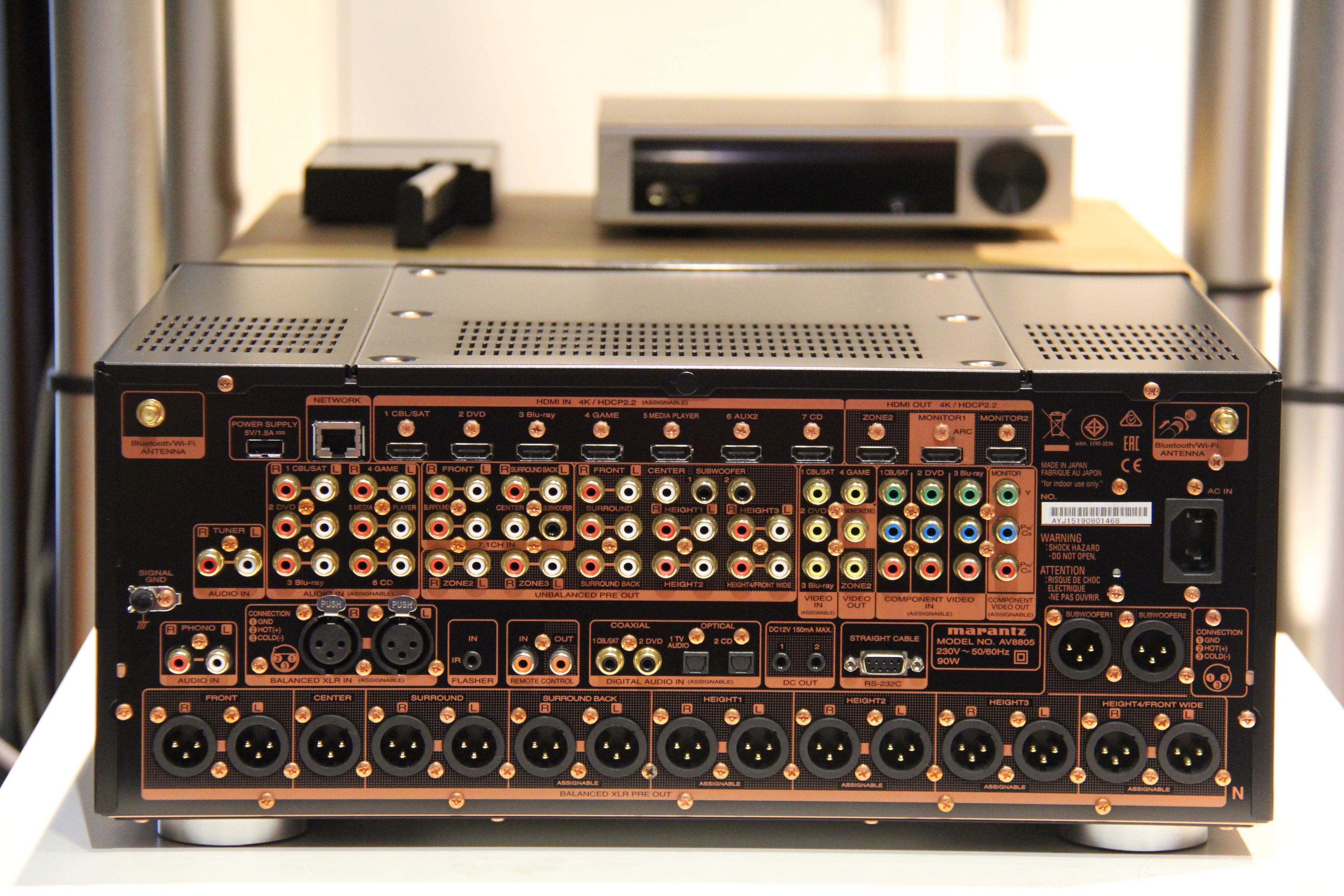

Inputs/Outputs
Composite In / Out 4+1 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-Room Video Out: Video / HDMI Yes / Yes
Analog In / Out 7+1 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 2 / No
Multichannel Pre Out Yes (15.2 RCA & 15.2 XLR)
Subwoofer Out 2 (independant)
7.1 Multichannel Input Yes
Speaker A / B assignable pre out
Bi-Amp Drive assignable pre out
Multi-Room Speaker Terminal pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay
AM/FM Tuner Yes
General
Metal Front Panel Yes
System Remote Control RC039SR
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
Power Consumption in W 90
Standby Consumption in W 0.2
CEC Standby Consumption in W Yes
Maximum Dimensions (W x D x H) in inches 17.3 x 16.1 x 7.3
Weight in lbs. 30.2
