Item Condition: Ex Demo , Full Warranty
Shipping Options: Pickup available and you can audition.,Shipping is available at agreed cost.
Suburb or Town: Notting Hill
State: VIC
Payment Method: Pickup - Cash, Paypal, COD Only
Reason for selling:
Further Information:
Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735
Engineering Genius
What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.

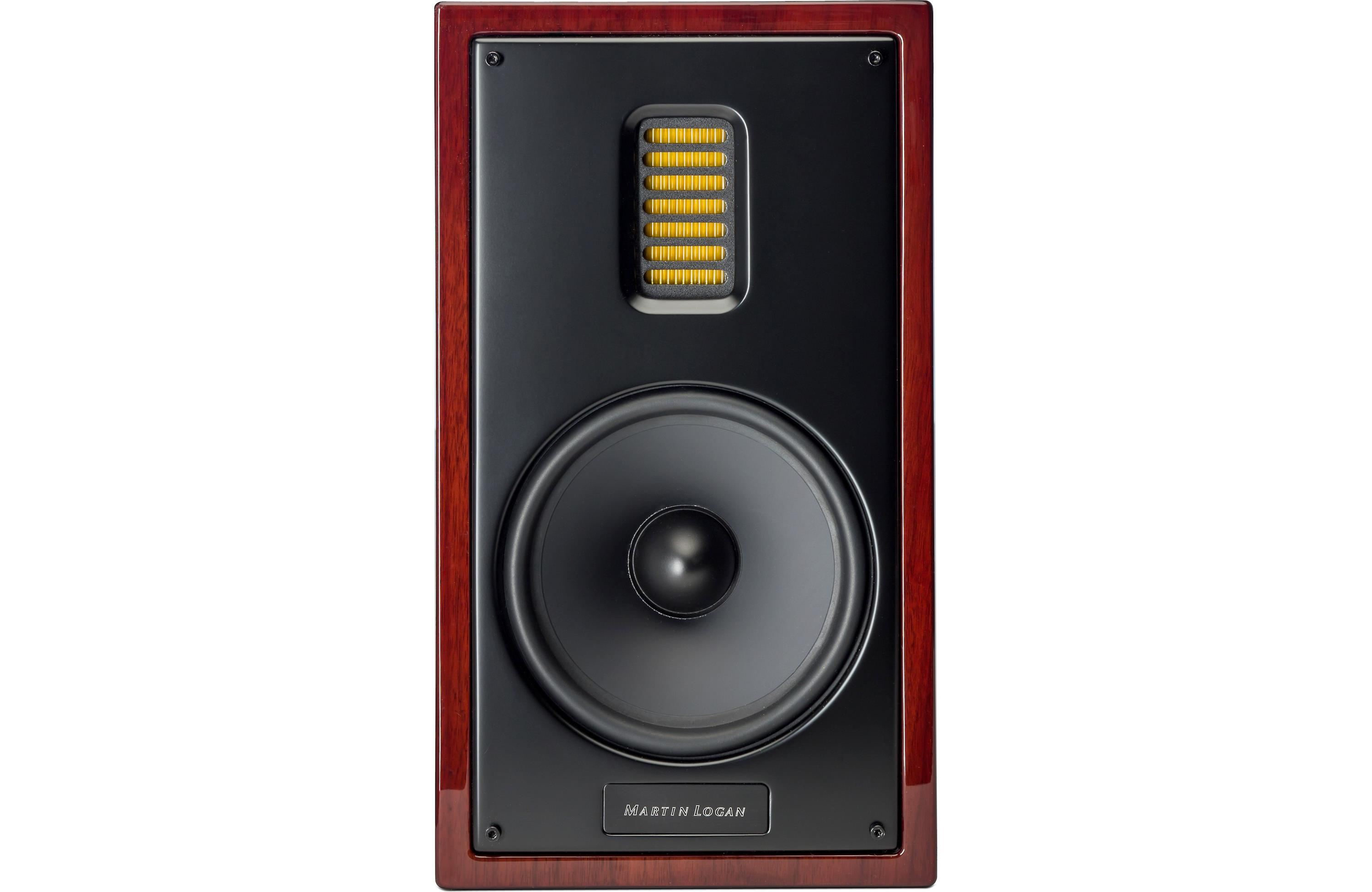

Folded Motion® XT Tweeters
The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.
The low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless performance.
Specifications
Specifications are subject to change without notice
Frequency Response
50–25,000 Hz ±3dB
Recommended Amplifier Power
20—250 watts per channel
Horizontal Dispersion
80°
Vertical Dispersion
30°
Sensitivity
92 dB/2.83 volts/meter
Impedance
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency
2,200 Hz
High Frequency Transducer
1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm
Low Frequency Transducer
6.5” (16.5cm) aluminum cone with cast polymer basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components
Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.

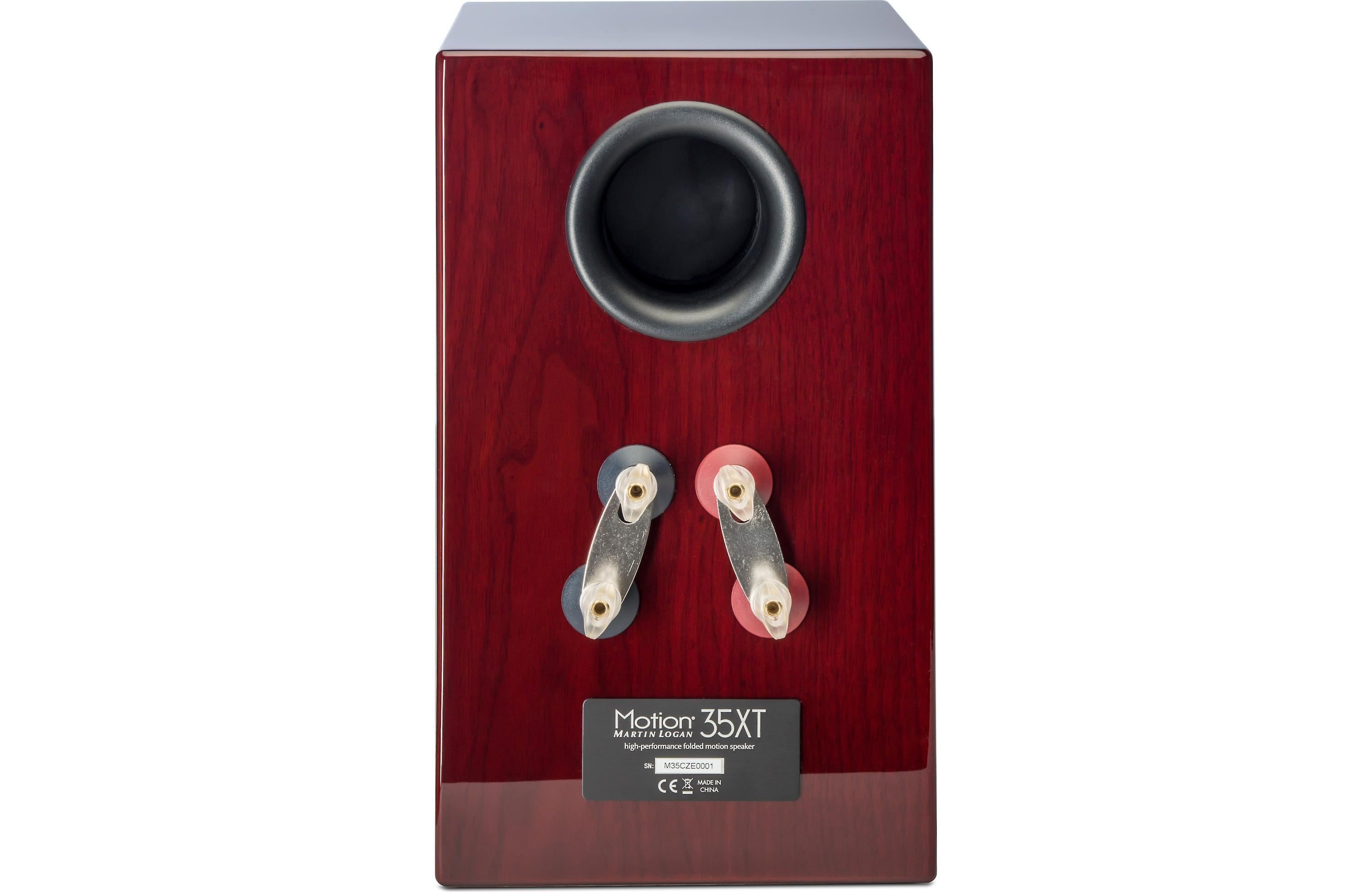

Inputs
Custom 5-way tool-less binding posts
Weight
18.5 lbs. (8.4 kg)
Dimensions
13.5" x 7.6" x 11.8 "
(34.3cm x 19.2cm x 30cm)
