Item Condition: Excellent
Shipping Options: Pickup available and you can audition.,Shipping is available at agreed cost.
Suburb or Town: Baldivis
State: WA
Payment Method: Paypal, bank transfer, cash
Reason for selling: To fund another purchase
Further Information:

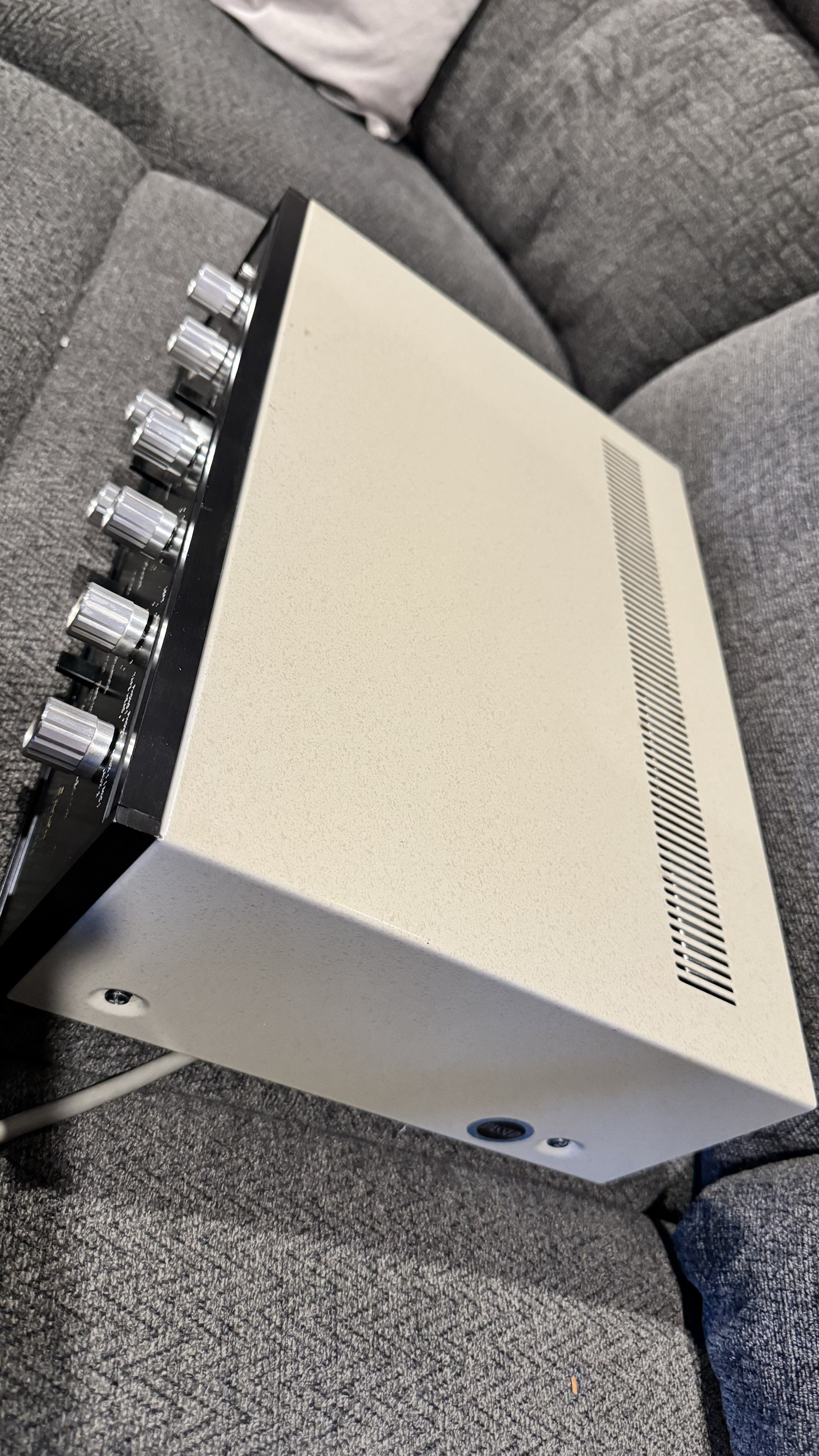

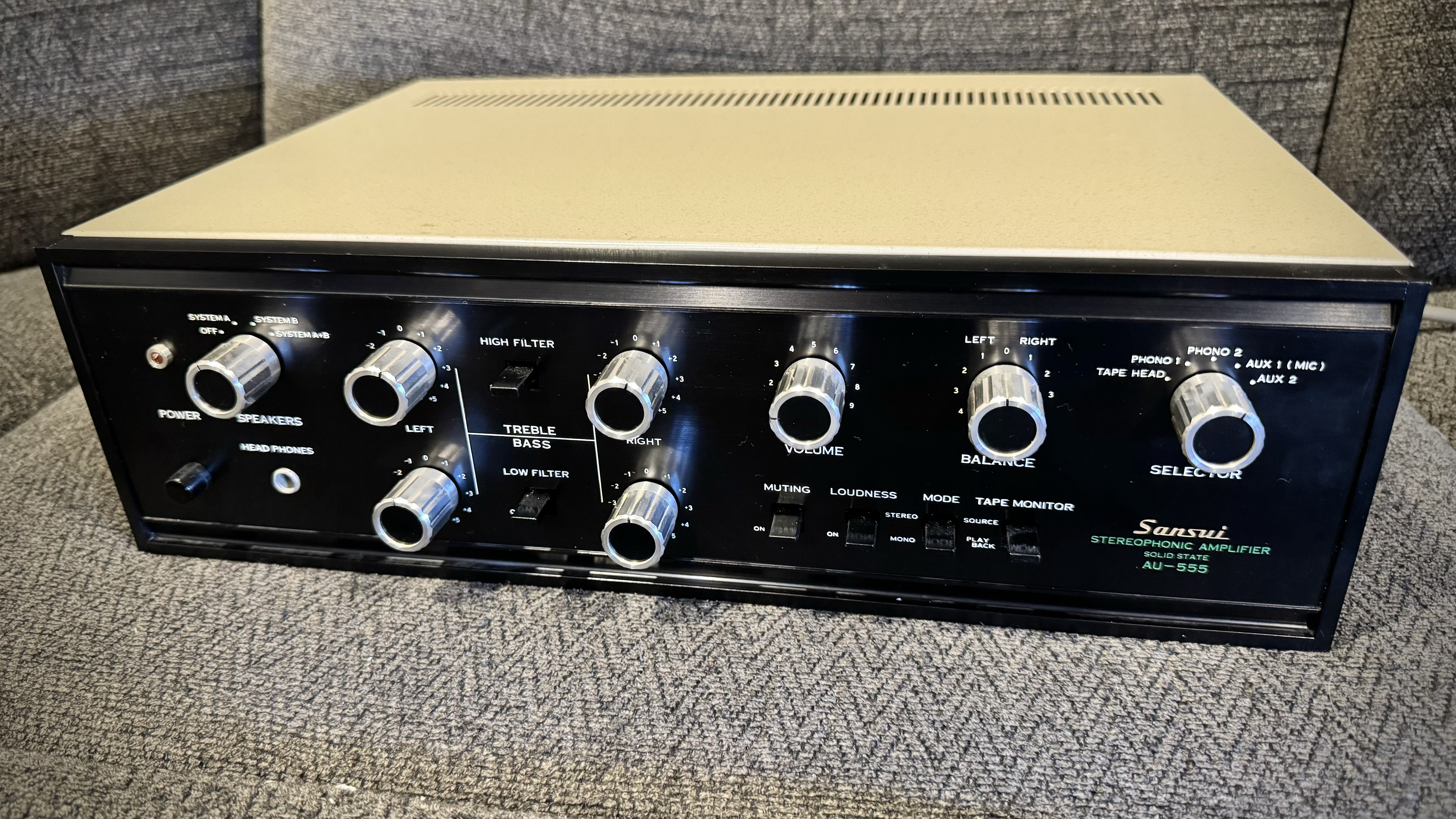

•Near mint cosmetic condition, A very clean example manufactured July 1968.
•All functions are working perfectly.
•A very nice sounding little amp displaying that sweet Sansui sound and punching well above it’s weight.
•Recently serviced and overhauled with the following work completed:

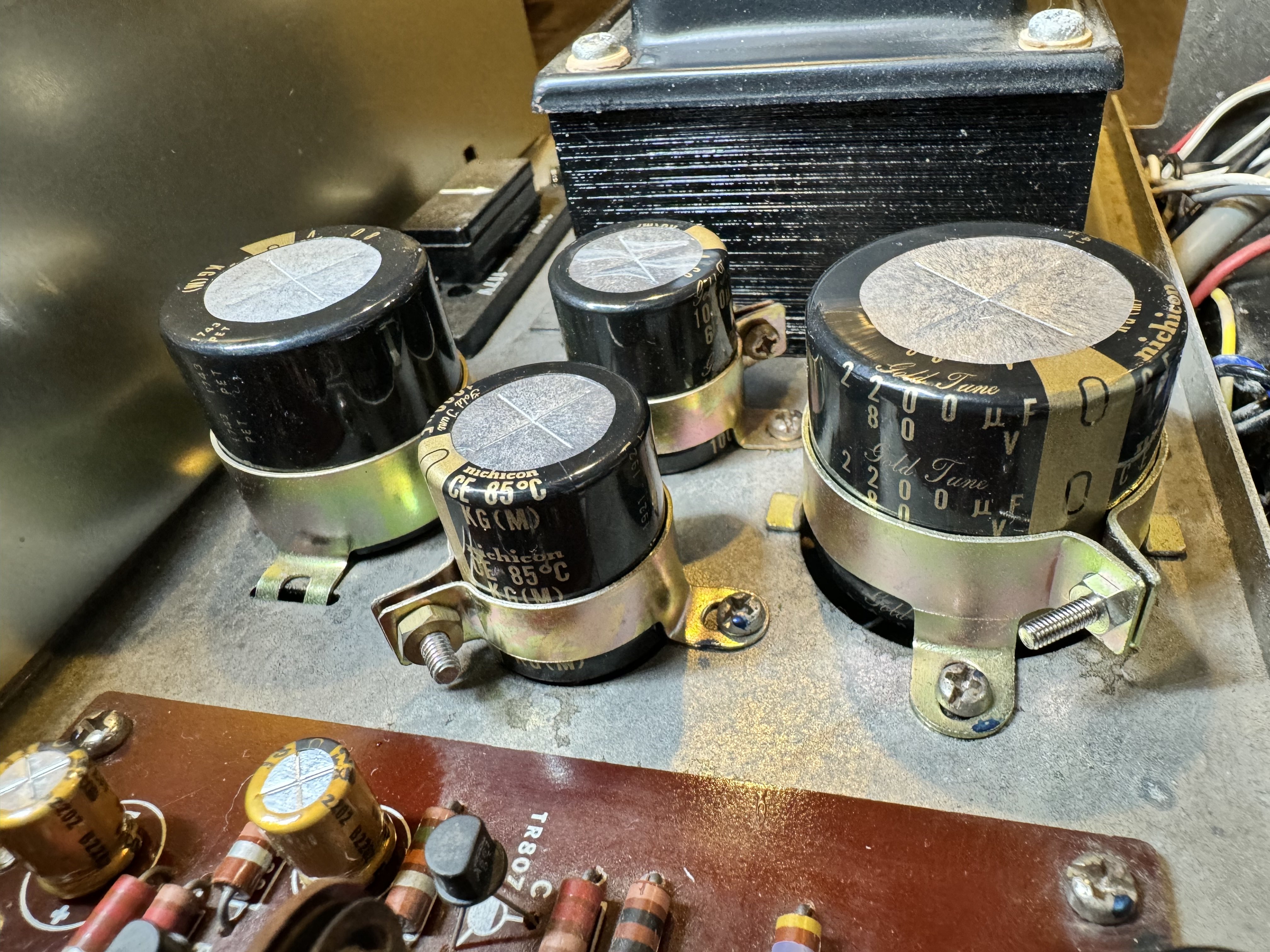

-all electrolytic capacitors replaced using quality new nichicon and wima parts.
-Resistors and diodes in power supply section replaced.

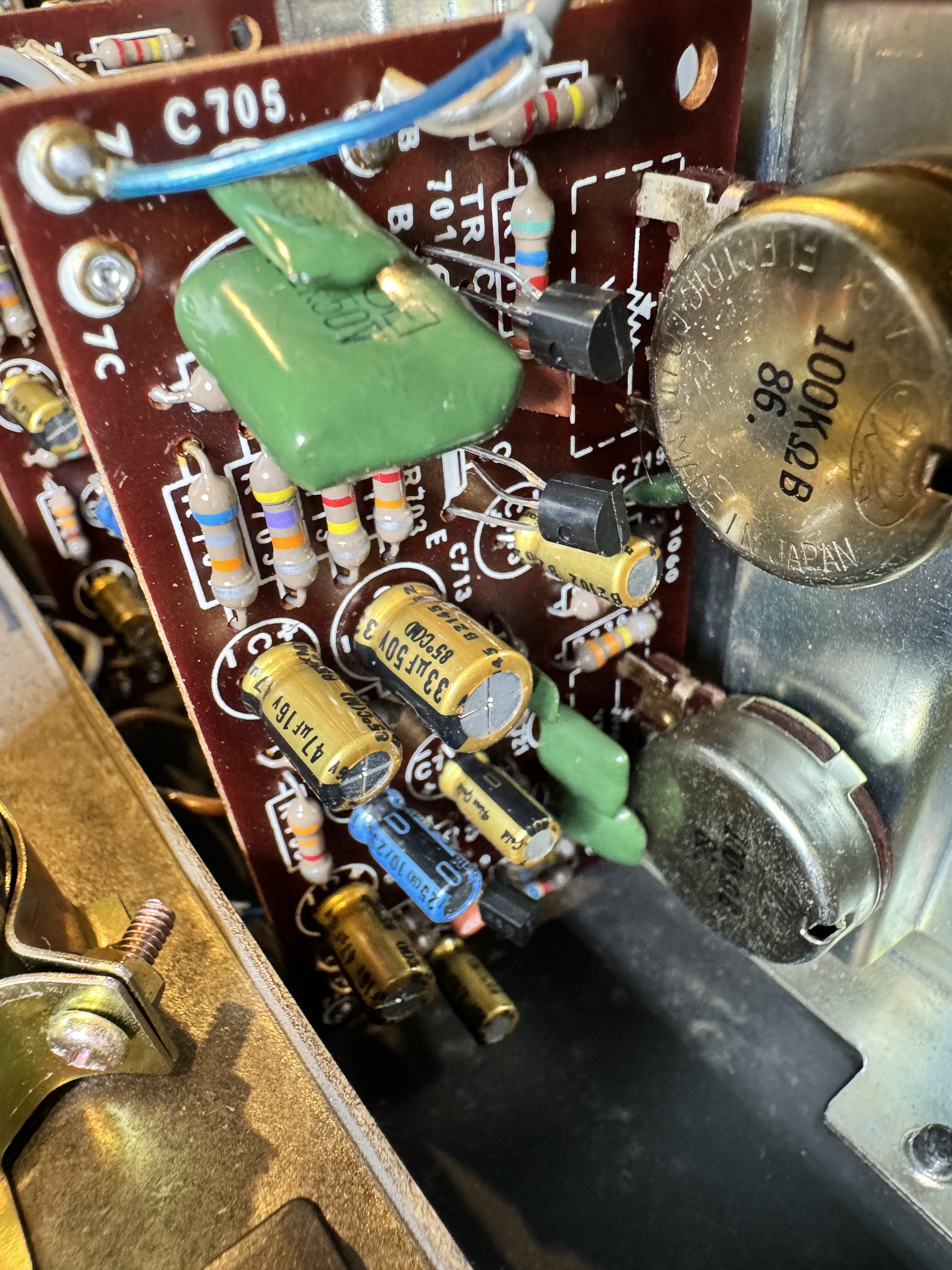

-All small transistors in pre amp section have been replaced with modern low noise equivalents.
-Center voltage trimpots replaced with bourns multi turn units.
-Bias and center voltage have been adjusted to manufacturers specs.
-Pots and switches treated with deoxit.
Specs from HifiEngine below:
Power output: 20 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 50kHz
Total harmonic distortion: 0.5%
Damping factor: 12
Input sensitivity: 3.5mV (mic), 2mV (MM), 200mV (line)
Signal to noise ratio: 80dB (MM), 80dB (line)
Output: 140mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 22 x transistors, 6 x diodes, 4 x thermistors, 1 x SCR
Dimensions: 382mm x 111mm x 267mm
Weight: 7.9kg
