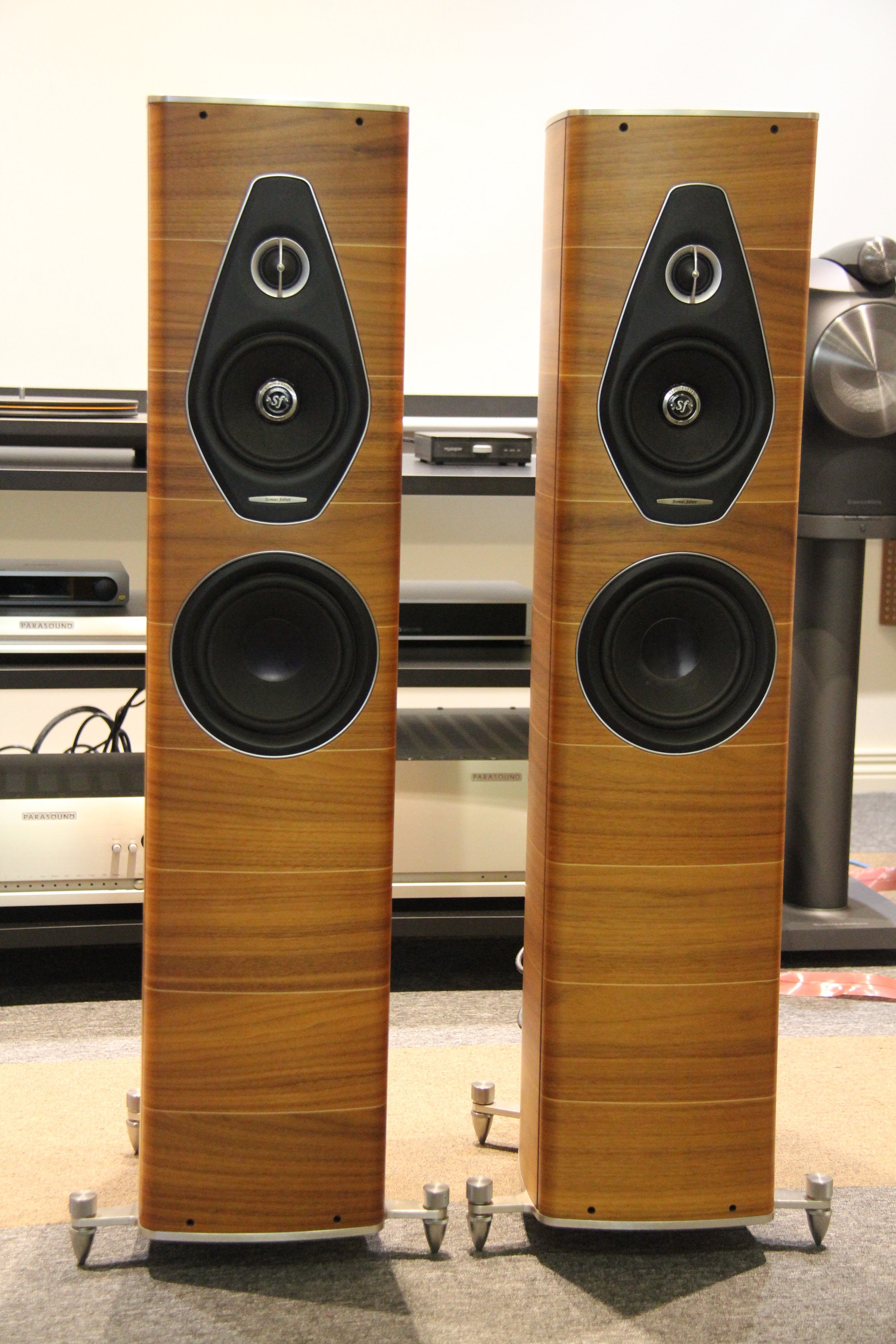

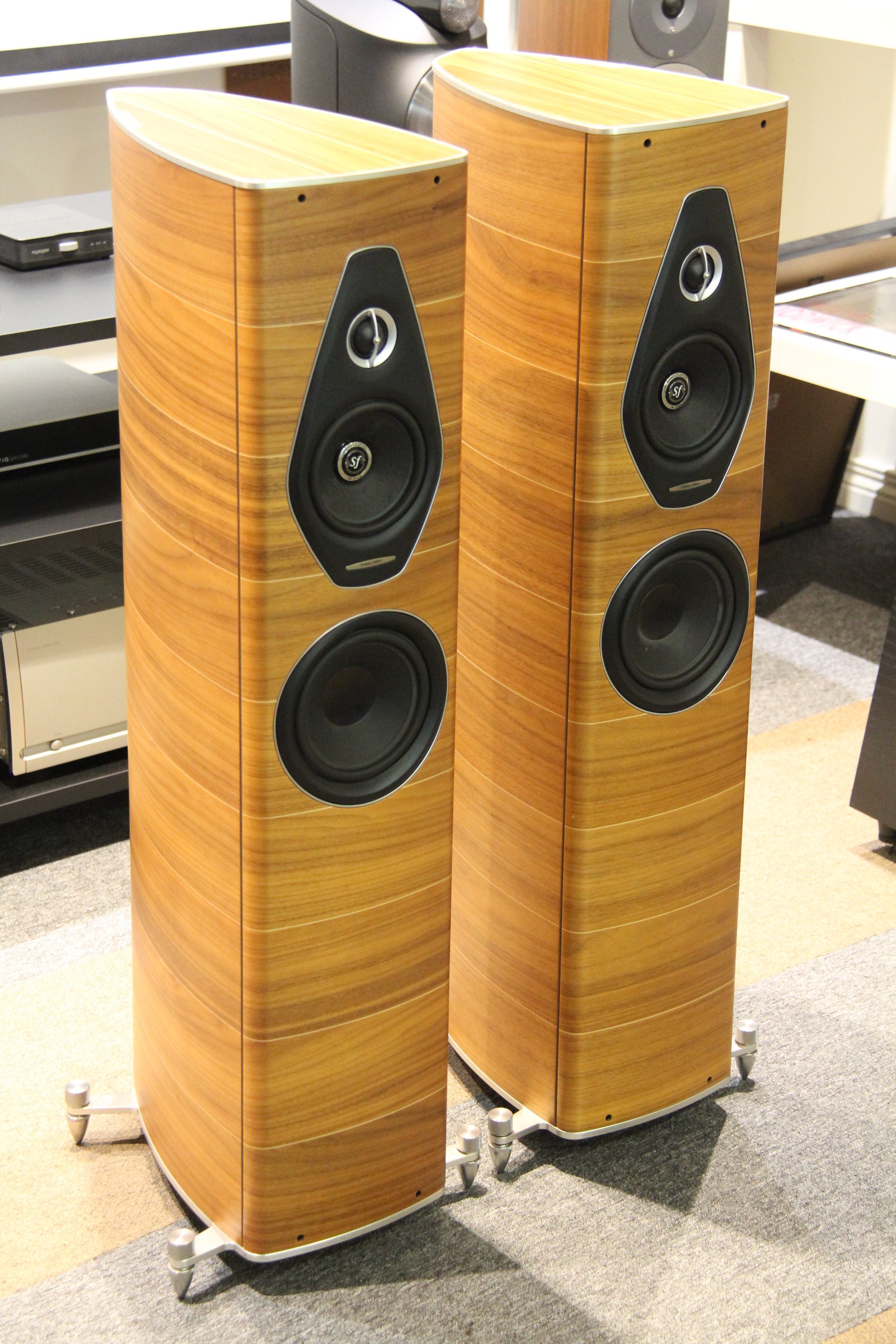

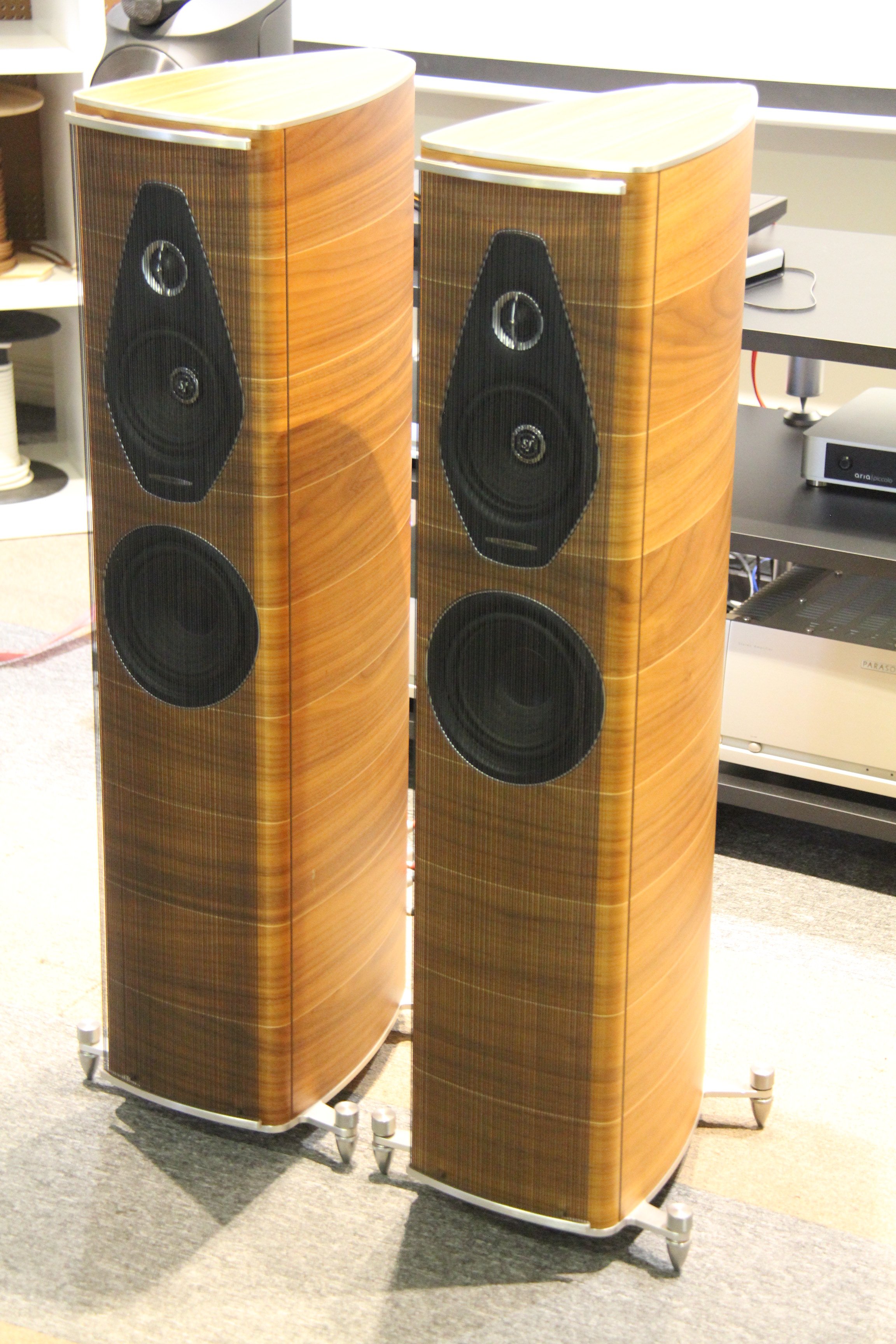

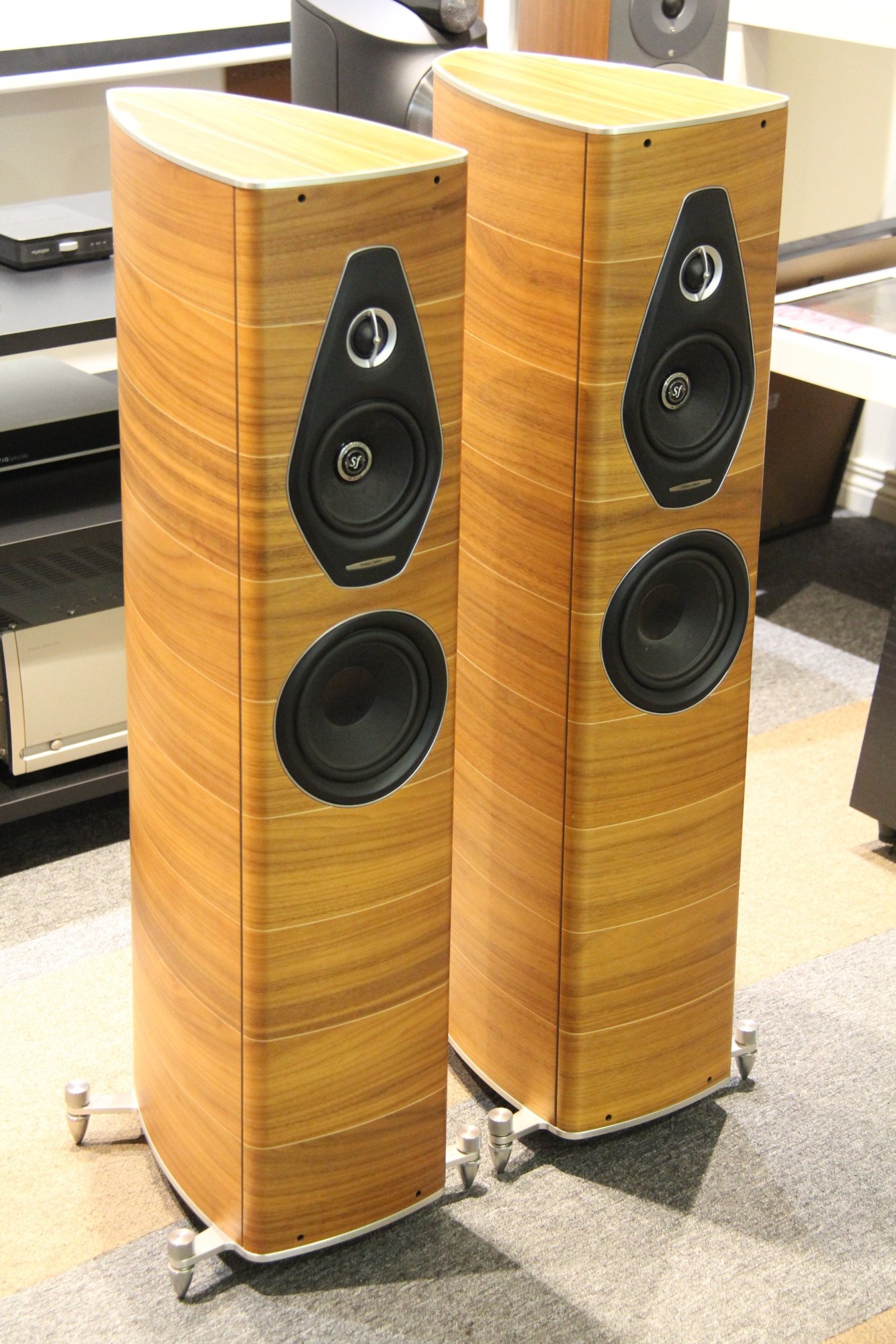

Sonus Faber Olympica Nova II Floorstanding Speakers

Further Information:

Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735

Organically Shaped

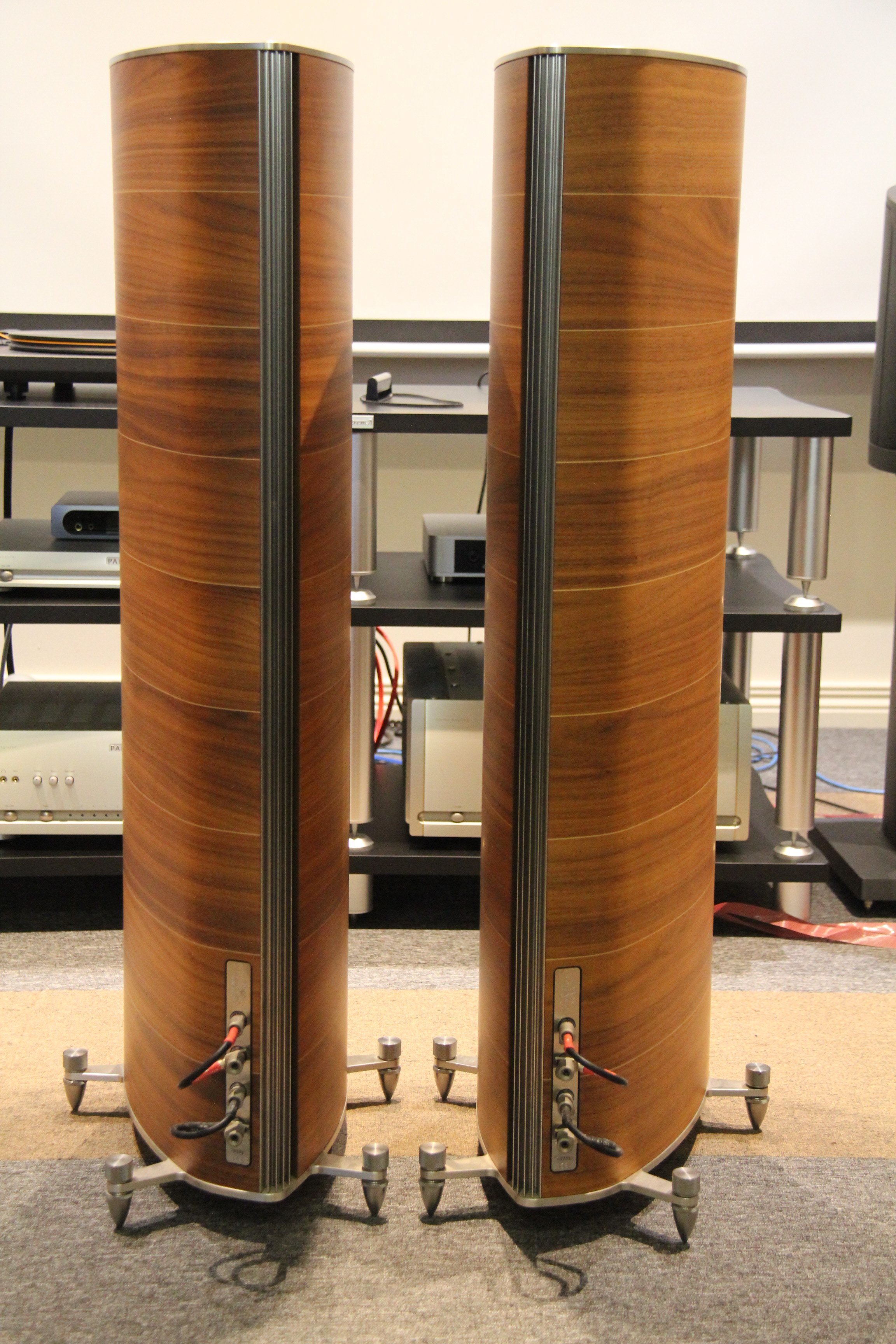

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of the first generation Olympica. The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room. Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure. No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

A Closer Look At Nova II
Olympica Nova II is the smallest floorstander of the collection, but it has everything needed to satisfy any acoustic requirement.
Wood: Just like the cabinet sides, the front baffle and the top are made in walnut or wenge hand finished natural wood which sits in a solid die-cast aluminium plate. The designers wished to pay homage to Sonus faber’s most representative material, making it even more of a standard bearer.
Tweeter: The 28 mm silk soft dome tweeter features the DAD™ technology (Damped Apex Dome™) that enhances the smoothness and extension in the high frequencies by applying local dampening to the apex typically responsible for anti-phase behaviour of soft dome diaphragms.  The DAD™ structure has been totally redesigned and is now a solid piece of diecast aluminium that forms an arch and ring over the dome to increase the strength and accuracy of the system.
Midrange: The midrange has been designed and constructed completely in Sonus faber’s laboratories in Italy. The cone is comprised of an air-dried, non-pressed blend of cellulose pulp, Kapok, Kenaf and other natural fibres. This treatment gives the cone a slightly rough surface of varying densities, which reduces cone resonance, guaranteeing a natural sound with increased transparency and greater detail.
Woofer: The woofer is made in Italy and benefits from an exclusive sandwich construction technique where two sheets of cellulose pulp are combined with a hi-tech syntactic foam in between them. This low-mass high-rigidity structure provides fast and powerful sound reproduction while allowing total coherence with the mid and high frequency drivers.
Crossover: The crossover network implements Paracross Topology™, making the crossover less sensitive to radio frequency interference, improving transient response and lowering the noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customised for Sonus Faber.
Reflex Port: The solid piece of extruded aluminium that completes the Stealth Ultraflex™ system, an extremely low turbulence porting system, is inherited from Homage Tradition models. Favouring the profile of sea waves, the structure facilitates airflow through the duct while controlling its speed and reducing any distortion causing turbulence.
Structural Rigidity: The entire structure of the acoustic enclosure has been redesigned. Similar to the Homage Traditional and Reference Collections, the side walls are constructed with eight layers of bended wood, providing the cabinet with extreme rigidity. Inside the cabinet, carefully placed structural ribs are used as reinforcement to reduce vibration and to handle the overall power of the transducers movements.
Natural Leather: The natural leather embellishes the Voice of Sonus faber, the brand’s iconic configuration of tweeter and midrange and enriches the aesthetic ring around the woofer. Genuine Italian leather that, as per Sonus faber’s tradition, is applied by hand in the production department in Vincenza.
Supports: Sonus faber have completely redesigned the supports for the cabinet, crafting the bottom plates from solid aluminium with threaded adjustable steel spikes (floor protectors are included). These ultra-solid supports take inspiration from the Homage Tradition & Reference Collections to guarantee greater strength and solidity.

ESSENCE OF A BRAND
Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber.
Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line.
The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.

ORGANIC SHAPE
The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.
The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.
Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure.
No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

Specifications
SYSTEM
3 way, full para-aperiodic vented box “Stealth Ultraflex”, floorstanding loudspeaker system.
LOUDSPEAKERS
Tw: H28 XTR3, Neodymium “cup design” motor system with DAD™, Ø 28 mm
Md: M15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm
W: W18XTR2-04, Ø 180 mm
CROSSOVER
250 Hz - 2.500 Hz
FREQUENCY RESPONSE
40 Hz – 35.000 Hz
SENSITIVITY
88 dB SPL (2.83V/1 m)
NOMINAL IMPEDANCE
4 ohm
SUGGESTED AMPLIFIER POWER OUTPUT
50 W – 250 W, without clipping
LONG-TERM MAX INPUT VOLTAGE (IEC 268-5)
22 Vrms
DIMENSIONS (HxWxD)
1036,5 x 359,7 x 422,5 mm
40.8 x 14.2 x 16.6 in
WEIGHT
30,7 Kg ea – net weight
67.6 Ib ea – net weight
