Item Condition: Used
Shipping Options: Pickup available and you can audition.
Suburb or Town: Castle Hill
State: NSW
Payment Method: Cash on Pickup
Reason for selling: No Longer Required
Further Information:
Vintage Intergrated Tube Amplifier with 2 inputs selectable. Used less than 200 hours. In good working conditions.

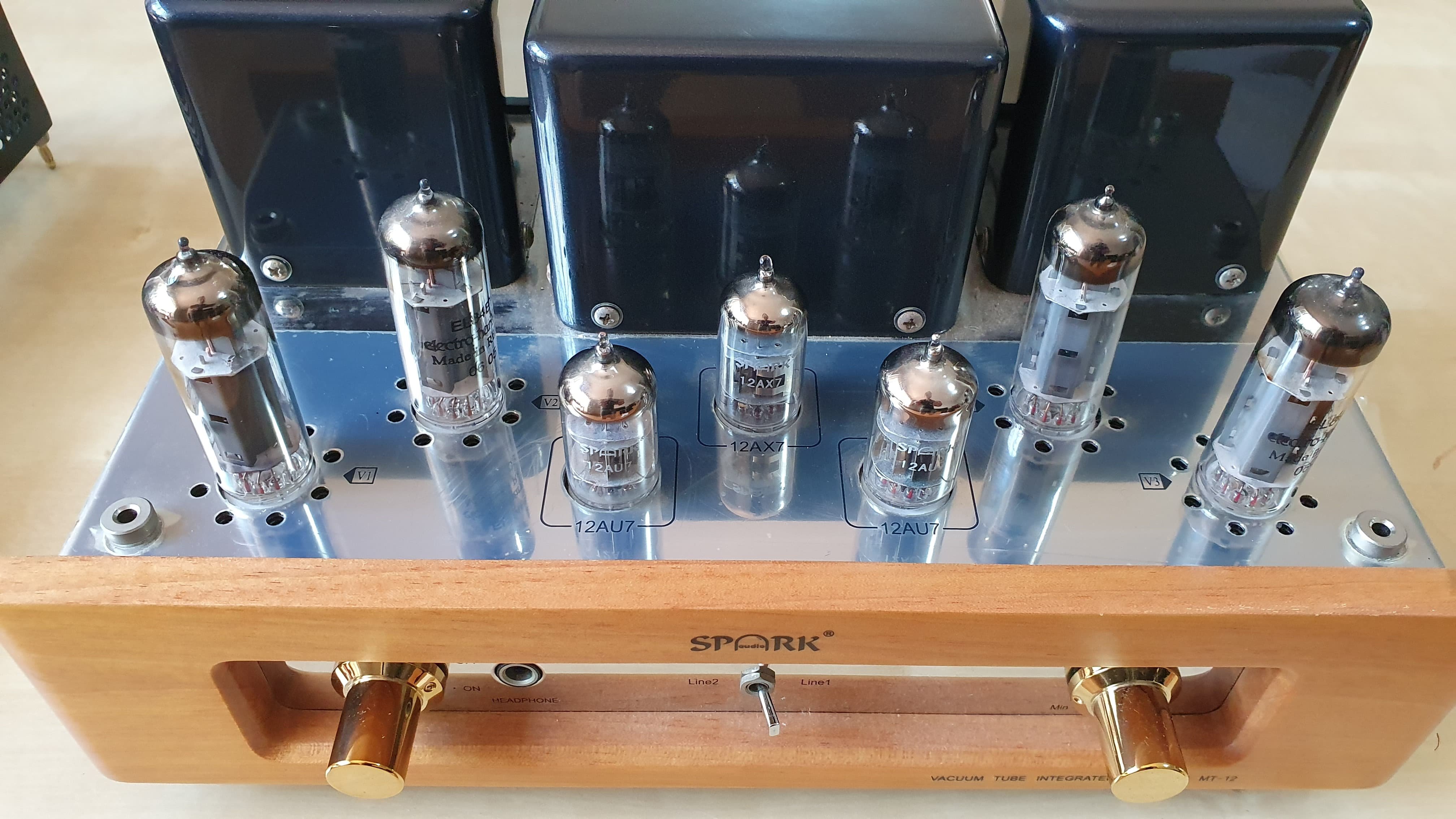

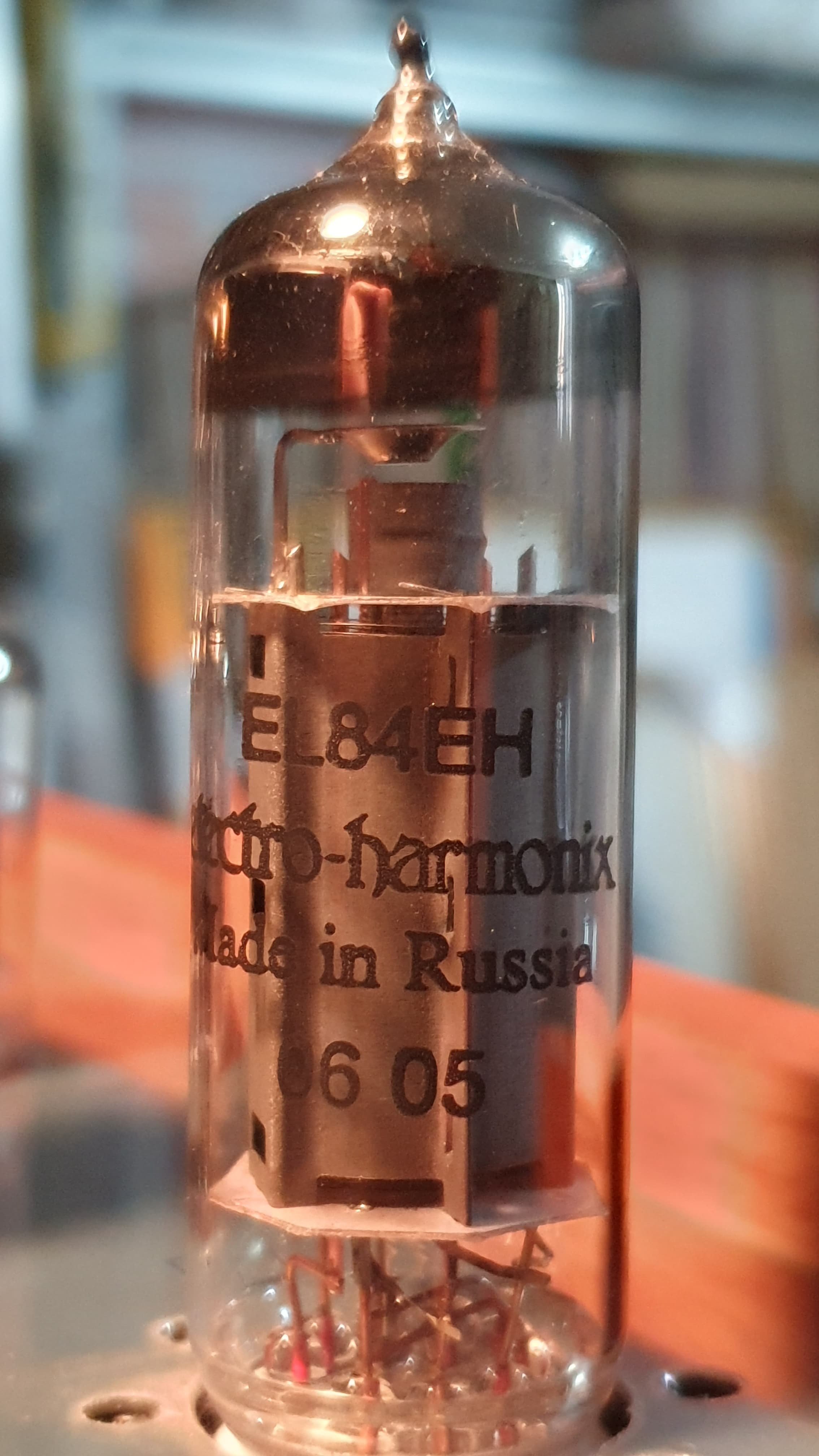

- Four 6n14n (EL84s) are used for class AB1 P.P amplification. This vacuum tube not only is of great speed to the music signal, but also high dynamic.

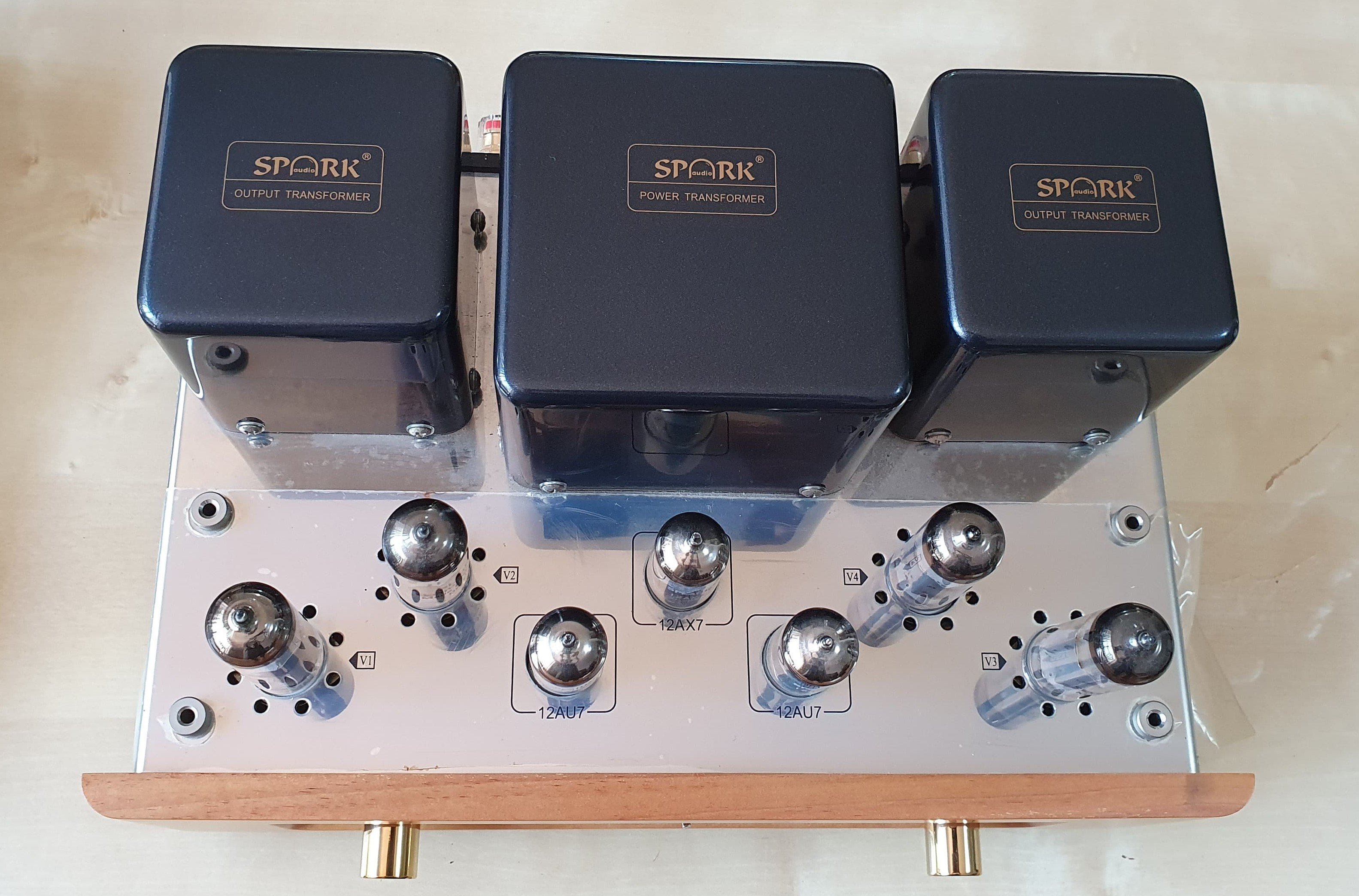

- The toroid power transformer and EI audio transformer are specially manufactured for Spark MT-12 by applying our unique workmanship, which has low magnetic leakage, wide frequency response and low impedance.

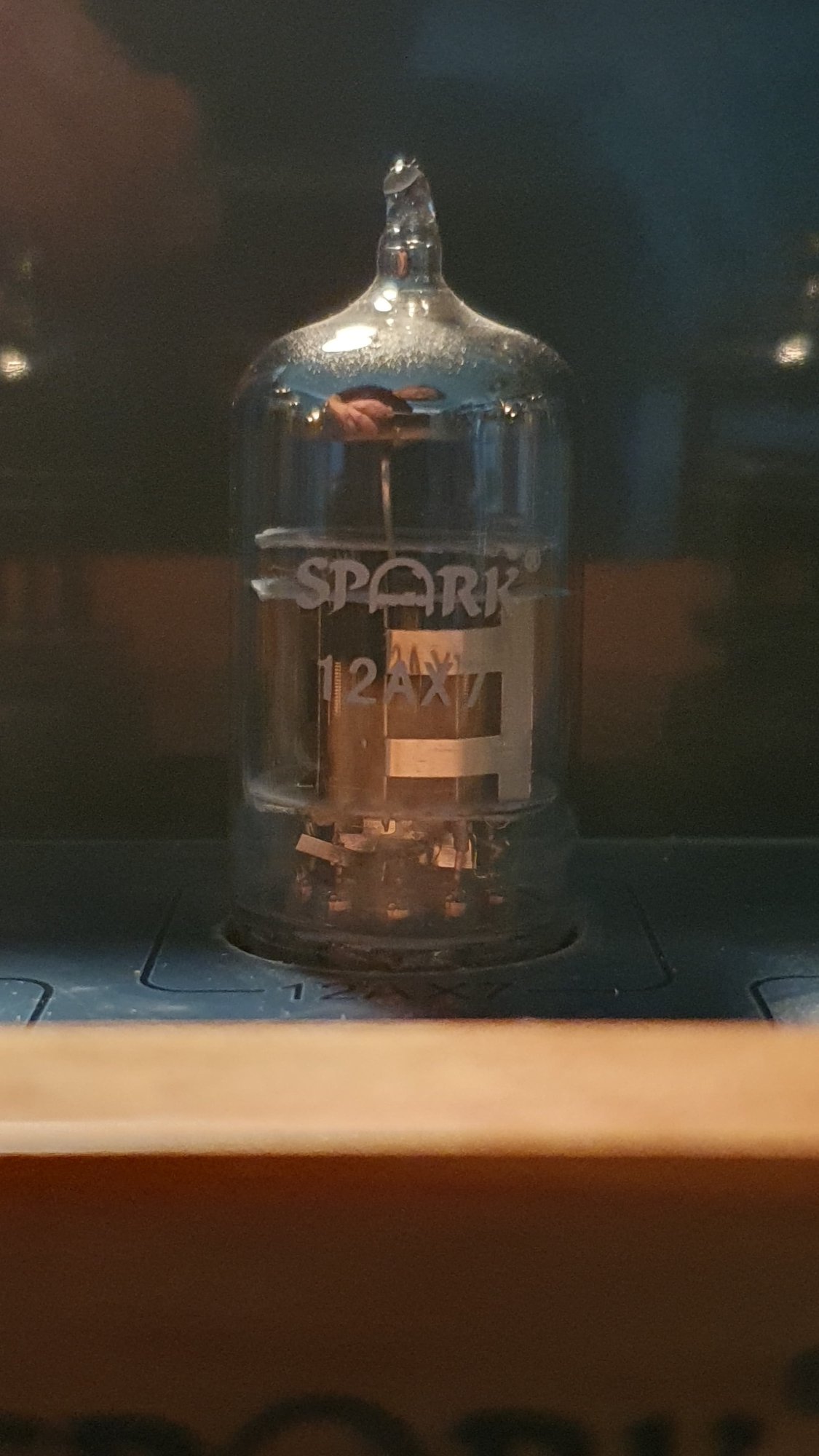

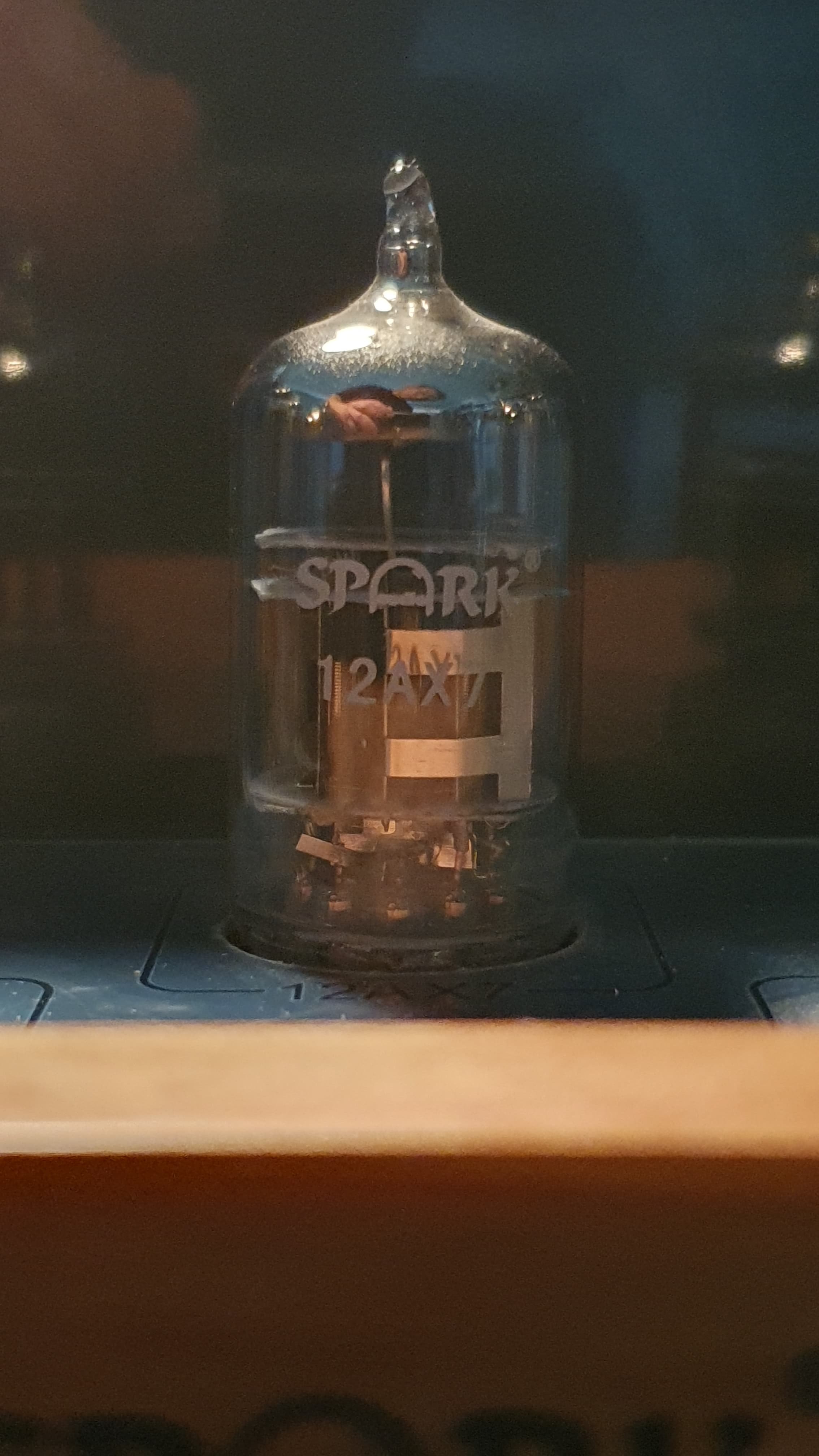

- One 12AX7 and two 12AU7s are used in the preamplifier.

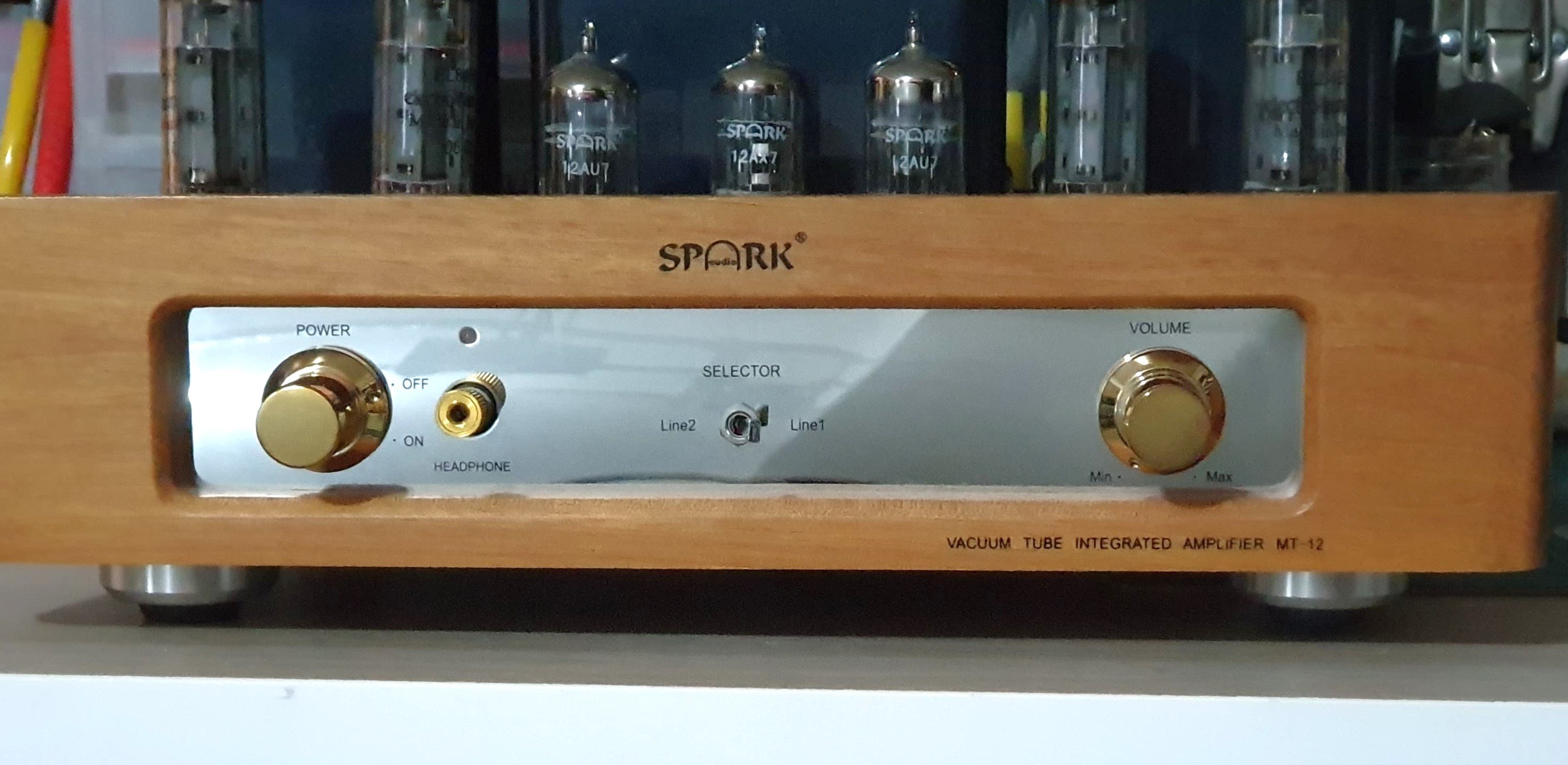

- With headphone output.
- All hand-made.
SPECIFICATIONS
- Power Output 2×12W (RMS,8Ω)
- Frequency response 20Hz~20kHz -0.5dB
- THD 1%
- S/N ratio 86dB
- Input impedance 100kΩ
- Input sensitivity 230mV
- Output impedance 4Ω,8Ω
- Power requirement 230VAC±5%, 50/60Hz
- Weight 9kg
- Power consumption 120W
- Dimension 330×160×240mm (W×H×D)
Original packaging available.
Pickup only because of its weight.
Due to health issues, I am no longer able to enjoy them, I am selling many of my audio collections which I collected over the years, hope they will be passed to someone who can enjoy them.
