STAX SRM-007tII Electrostatic Headphone Amp

2 years ago 346

Item Condition: Excellent

Shipping Options: Pickup available but audition is not available.,Shipping is available at agreed cost.

Suburb or Town: Neutral Bay

State: NSW

Payment Method: EFT

Reason for selling: No longer needed

Further Information:

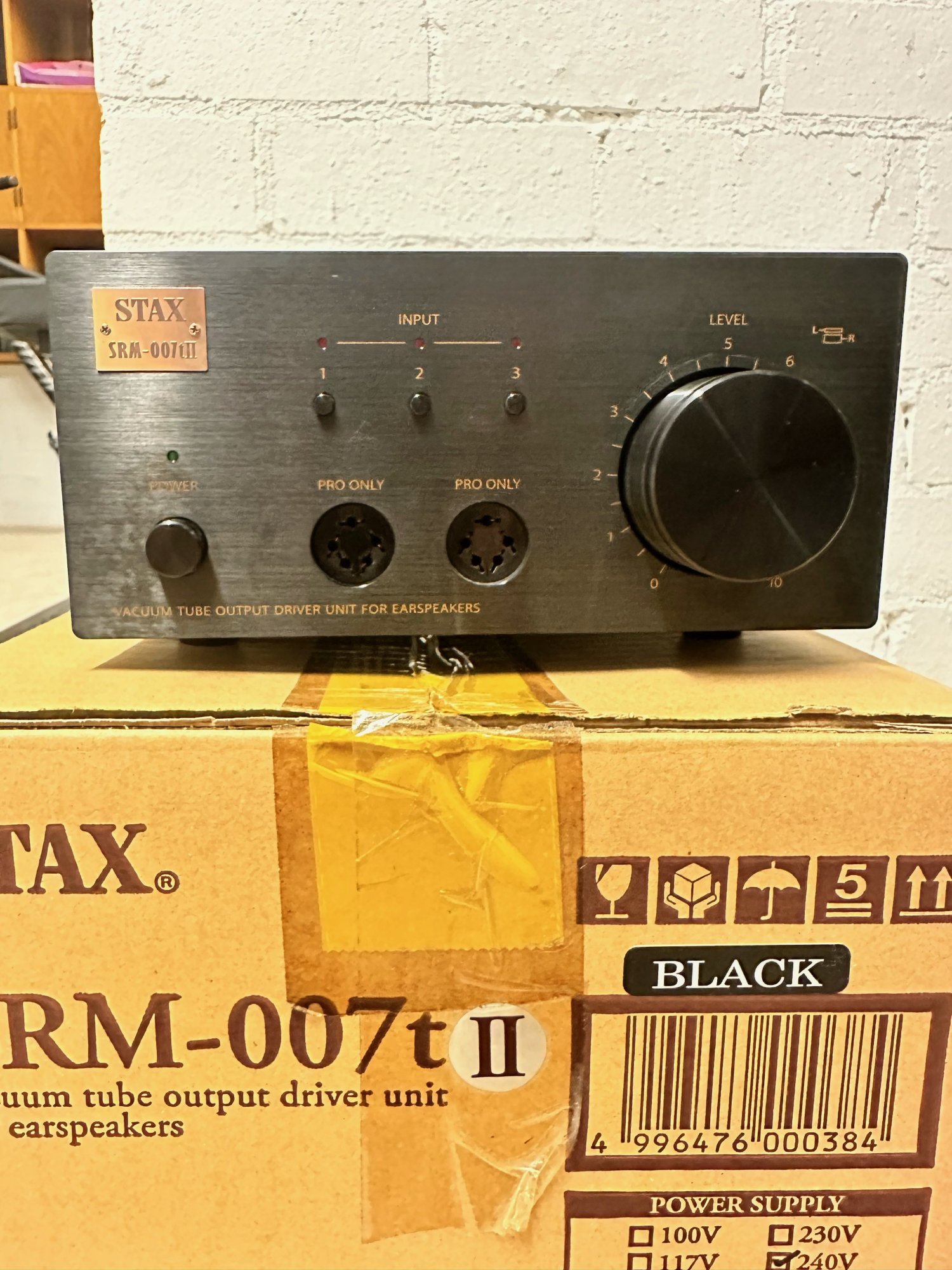

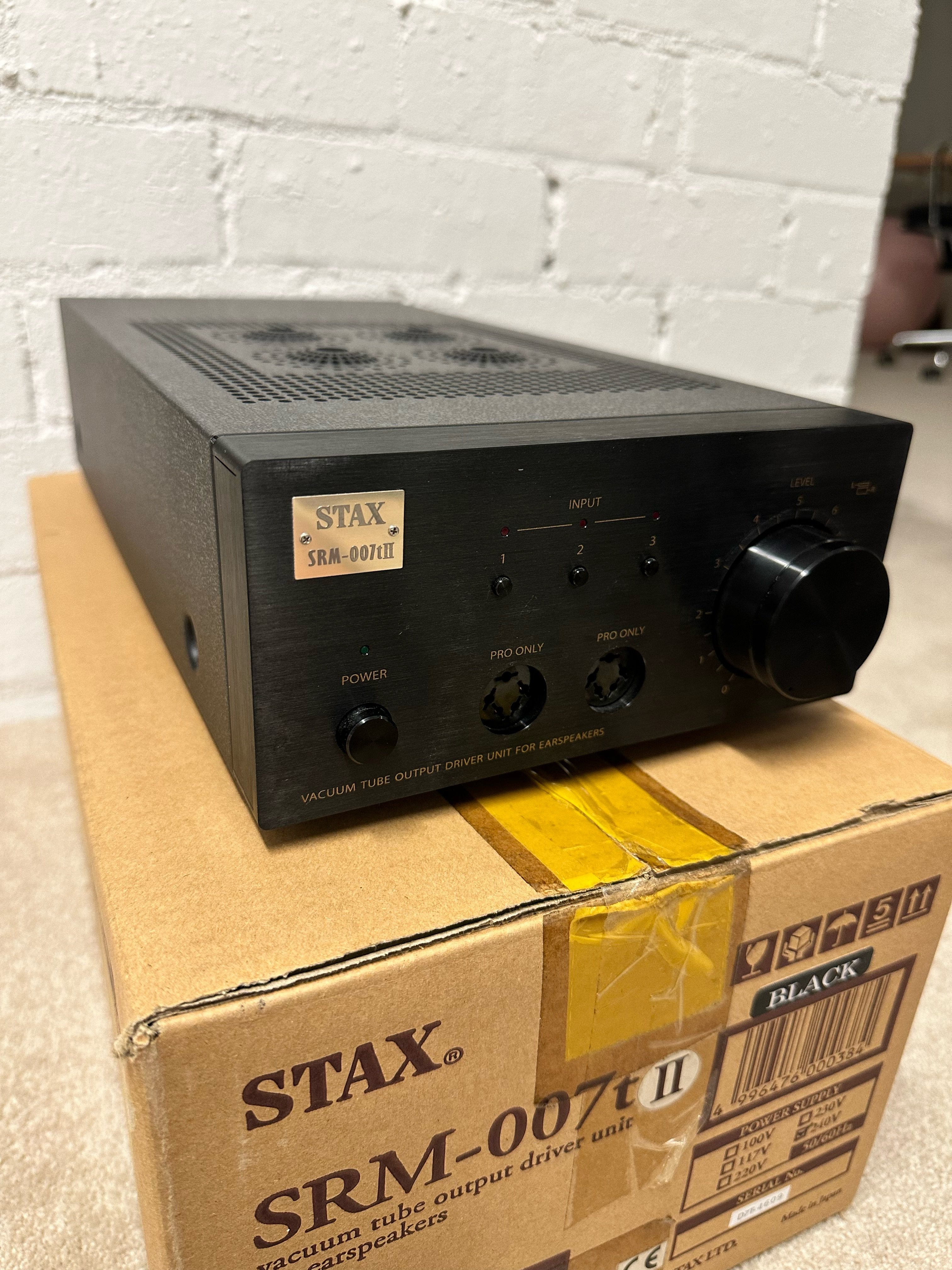

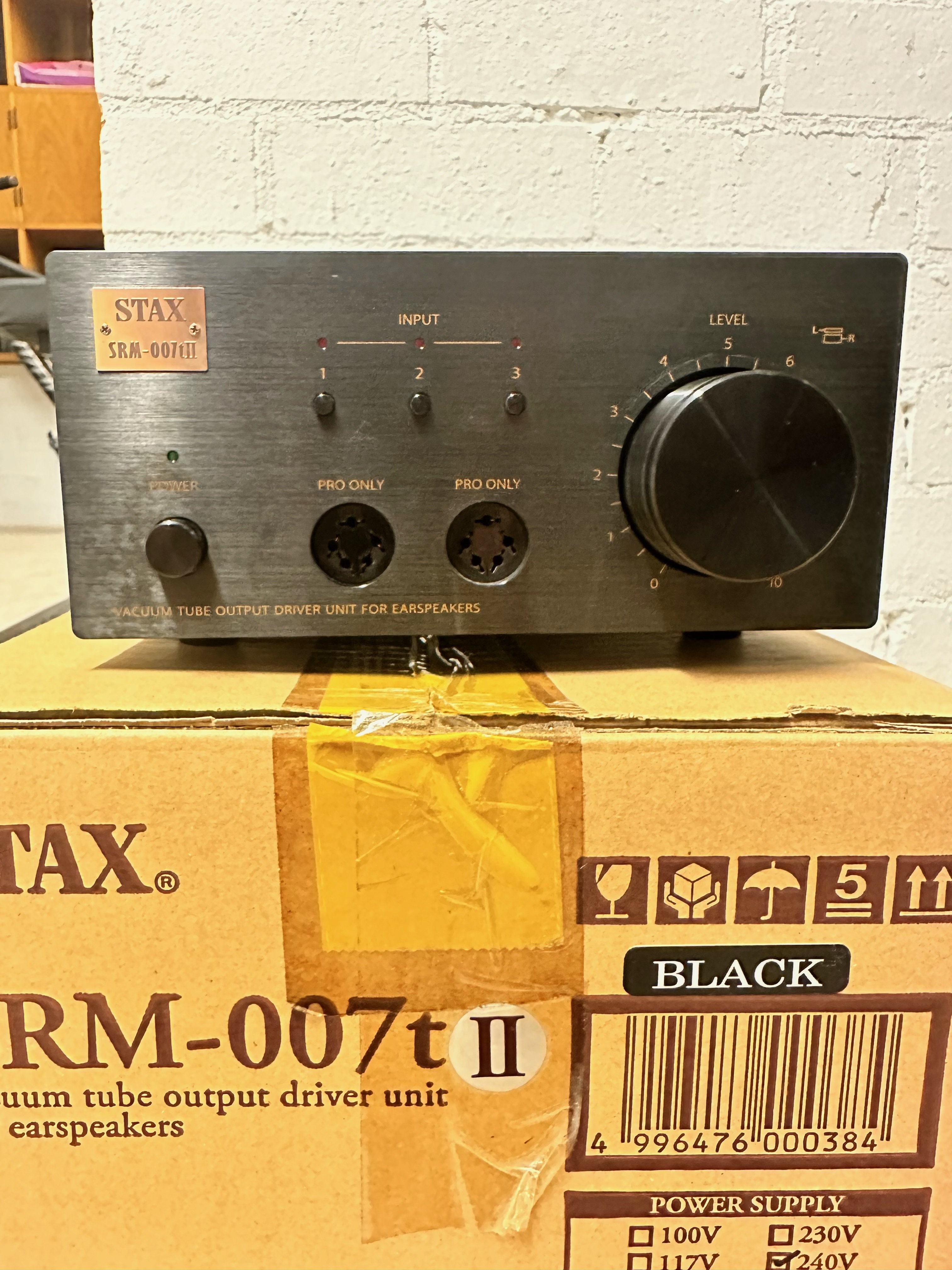

Moving on my wonderful STAX SRM-007Tii electrostatic amp. It's been a fantastic partner for the sublime STAX SR-009 that I use, offering plenty of punch and dynamics and gobs of detail.

Great write-up on the pairing here at Stereophile: https://www.stereophile.com/content/listening-stax-sr-009-and-great-headphone-amplifiers-stax-srm-727tii

Specs:

Vacuum tubes: 6FQ7/6CG7 type x 4
● Frequency response: DC-100 KHz / +0, -1.5 dB SR-007 or SR-404 Signature, when using 1 unit
● Rated input level: 200 mV / 100 V Outputs
● Maximum input level: 30 V r.m.s. / at Minimum volume
● Amplification: 54 dB (x500)
● Total harmonic distortion: 0.01% / 1 KHz, 100 V r.m.s. output SR-007 or SR-404 Signature, when using 1 unit
● Input impedance: 50 KΩ / XLR balance 50KΩ×2

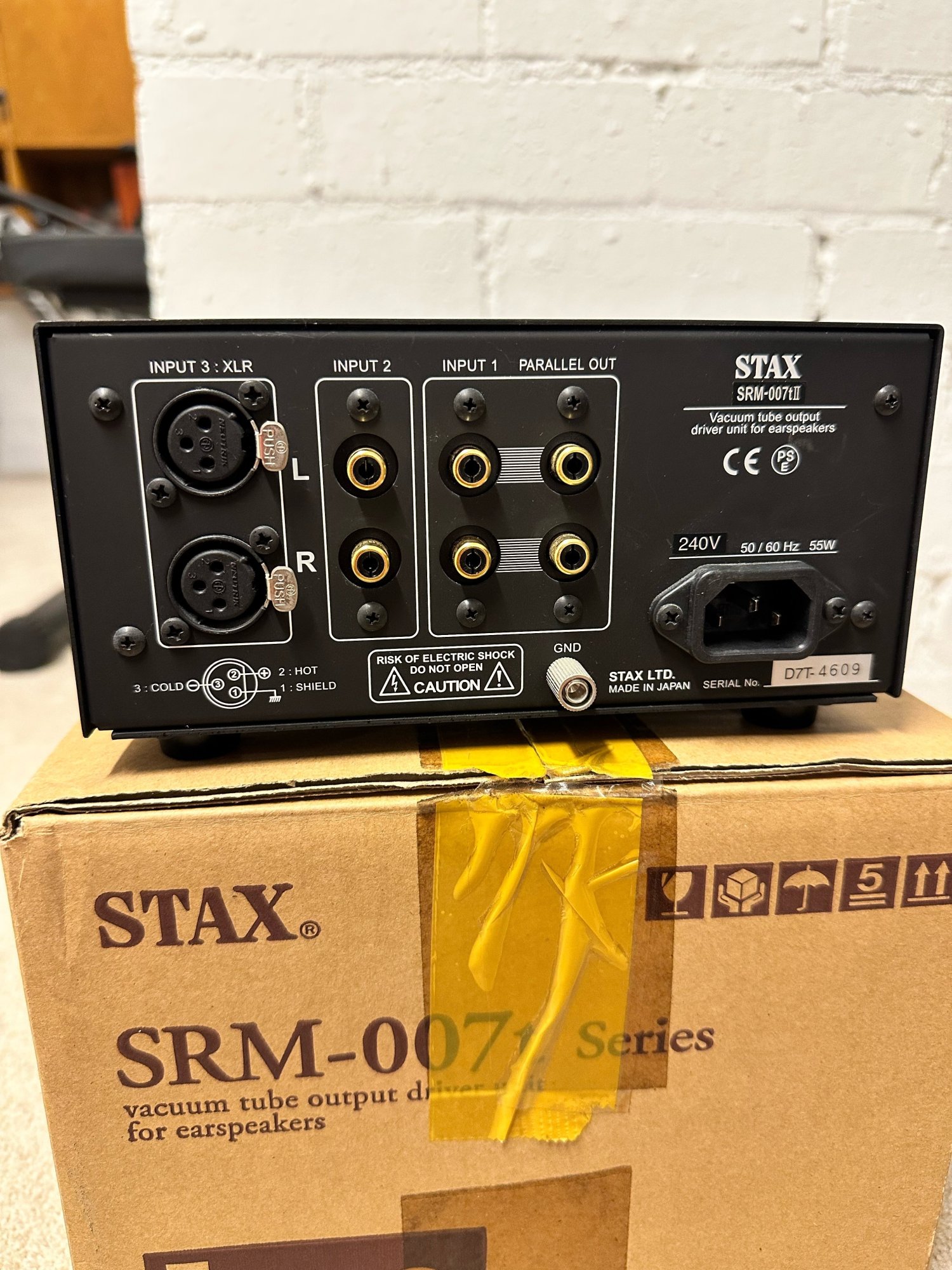

● Number of inputs: RCA×2, XLR×1 (balanced)
● Maximum output voltage: 340 V r.m.s. / 1 KHz
● Standard bias voltage: DC 580 V
● Power consumption: 55 W
● Temperature range for use: Between 0º and 35ºC, max. 90% (no condensation)
● External dimensions: 195 (w) x 103 (h) x 420 (d) mm (including VR knob and pin jack (20 + 10)
● Weight: 4.7 Kg
