Item Condition: Used (Original owner)
Shipping Options: Pickup available but audition is not available.,Shipping is available at agreed cost.
Suburb or Town: Queens Park 2022
State: NSW
Payment Method: Bank Transfer, Cash or PayPal
Reason for selling: Upgrade
Further Information:

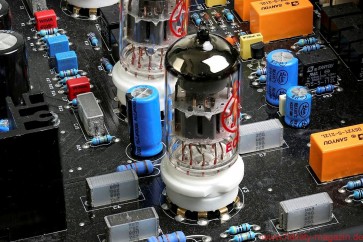

The all important component of this of this line stage comprises of two ECC83/12AX7 and one ECC82/12AU7 are run by a multi stage fully regulated power supply.

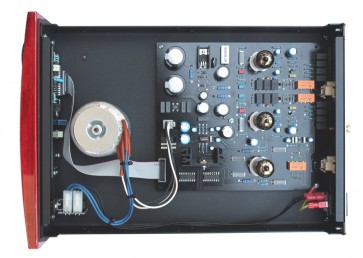

To back this up the design has an over size shielded power transformer for reduce the interference. An array high grade metalized polypropylene capacitors controlling the audio signal circuits. The MM input stage uses a low noise JFet with a separate regulated power supply with extensive filtering for reducing the interference and noise. Using an ECC82/12AU7 tube on the output stage, gives this unit a very low output impedance without losing signal.

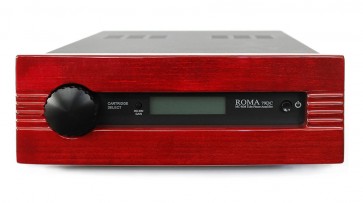

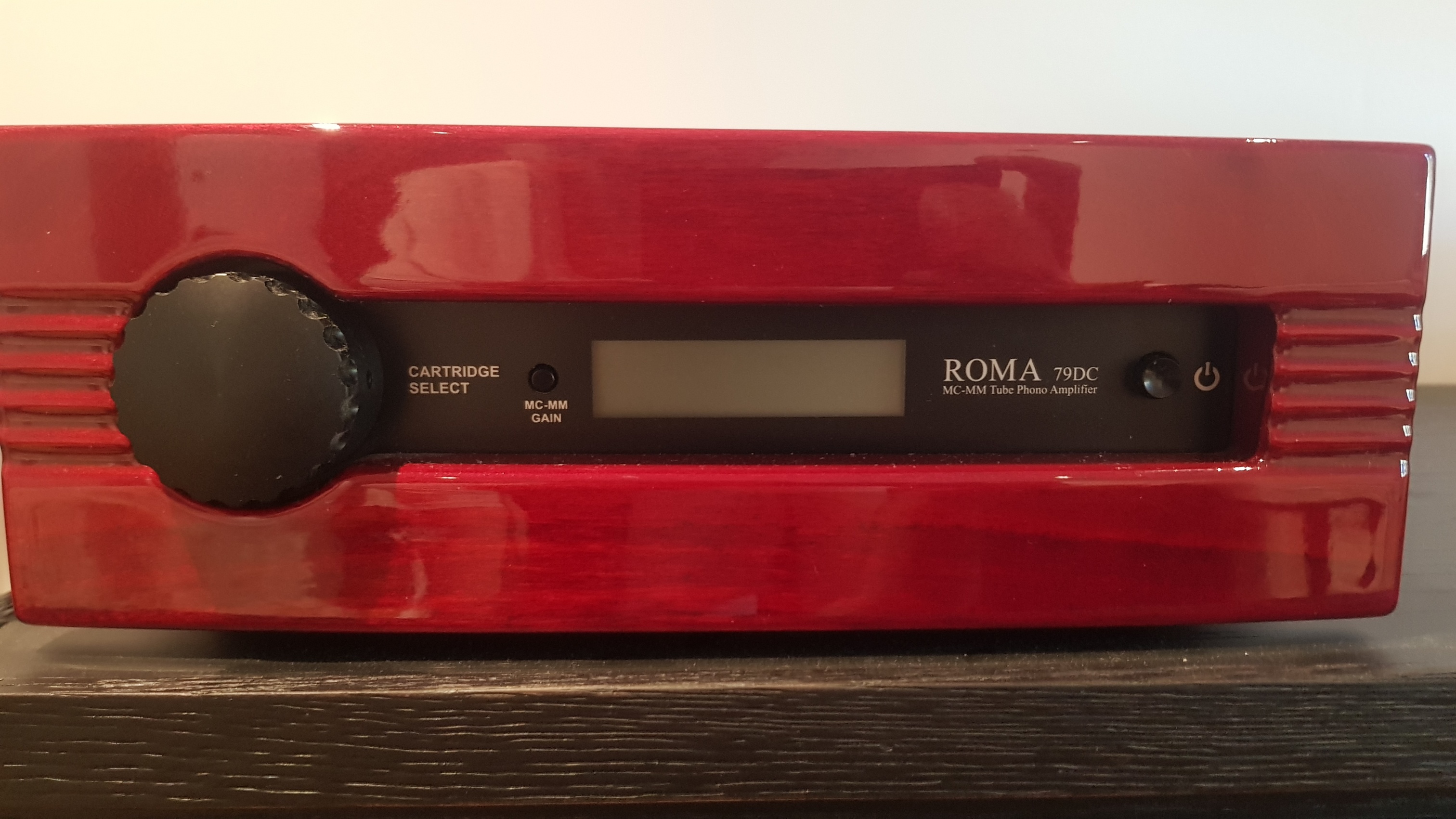

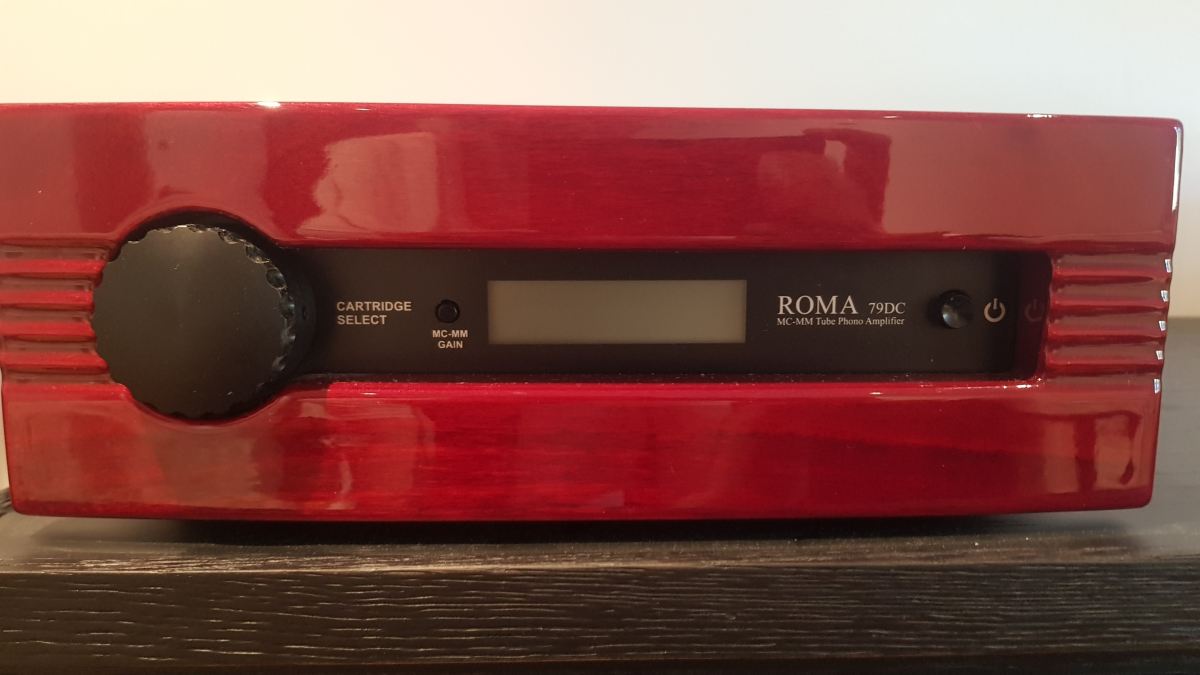

The Roma79DC has easily selectable capacitors (MM) and impedances (MC) for cartridges by a front mounted knob selector which is also shown on the front LCD display.
Standard Front Panel Finishes: Red Wood Laquer
Gain Stage (Each Channel) 1 x ECC83 Vakvwe + Ultralow Noise JFET
Out Stafw (Each Channel) 1 x ECC82 Valve
Frequency Response: RIAA Curve 20Hz-20Khz +- 0.5 dB
Gain (MM) 40dB
Gain (MC) 60dB
Cartridge load: Selectable front knob
MM: 47Kohm
47/100/250/200/270/370pF
MC: 100pF
22/47/100/150/330/1Kohm
Signal to Noise Ratio > 80dB (MM), > 60dB (MC)
Power Consumption 30w
Dimensions (W,D,H); 260x3780x95mm
Weight: 5kg
Items like new. Can forward few photos if required. More than welcome to come and audition before purchase.
